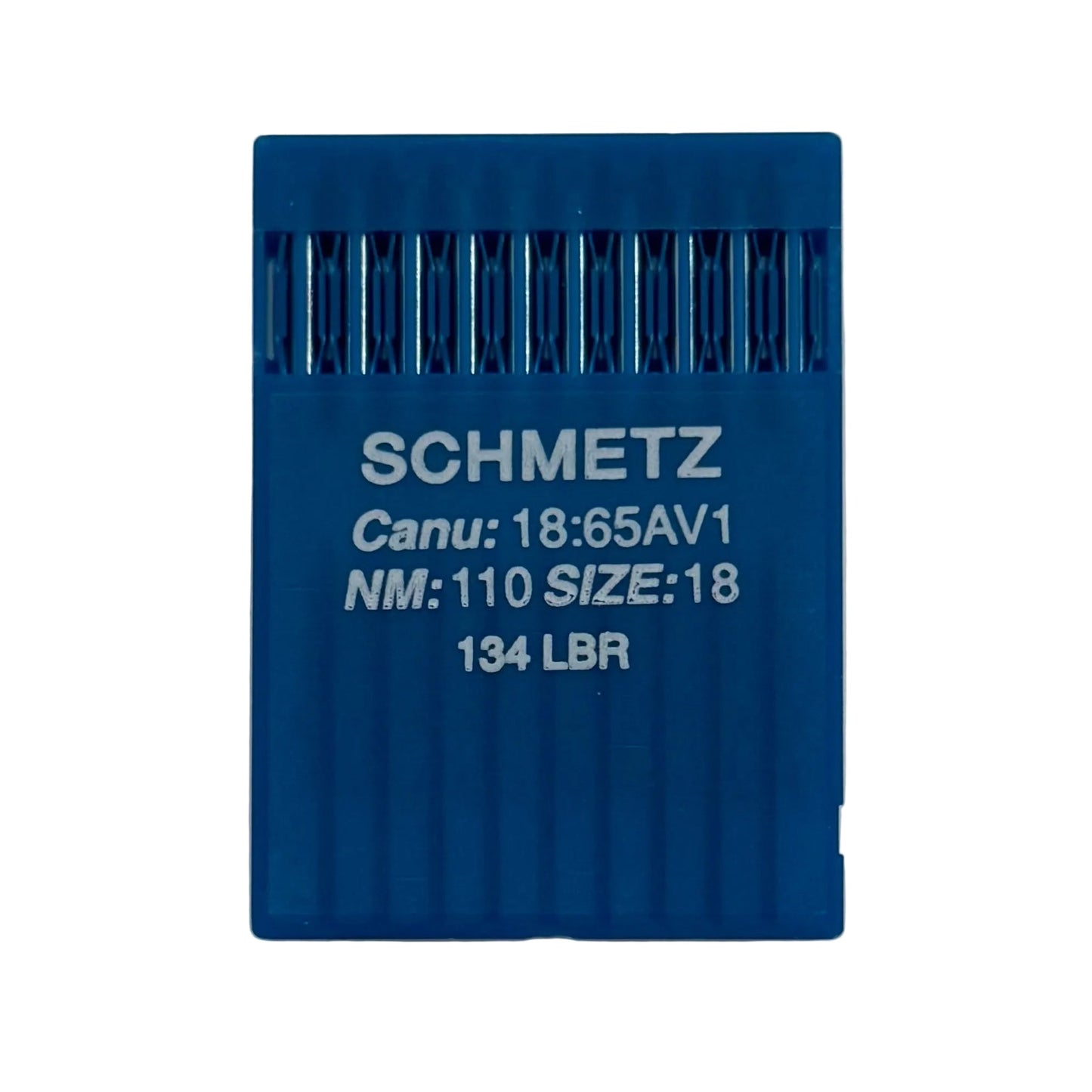

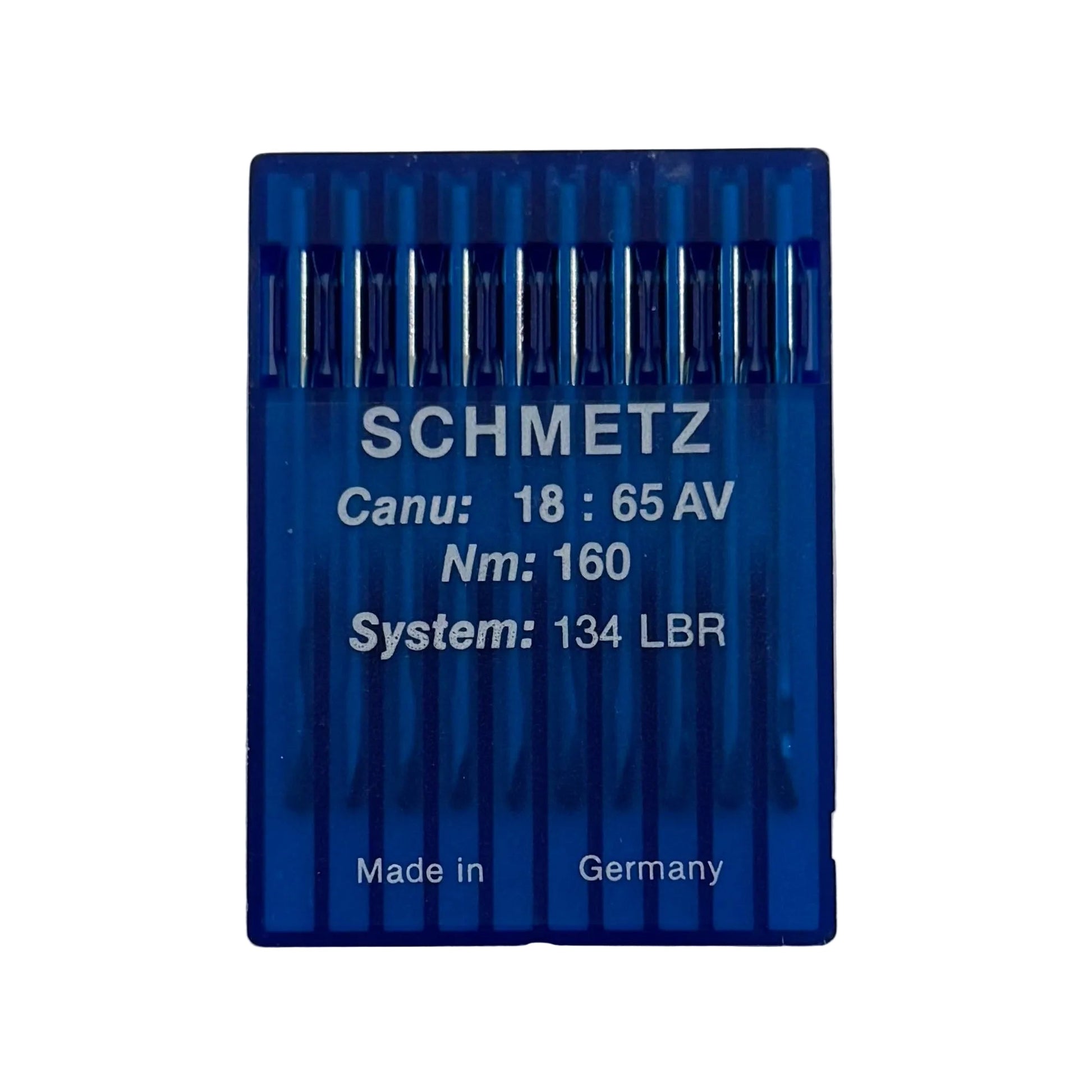

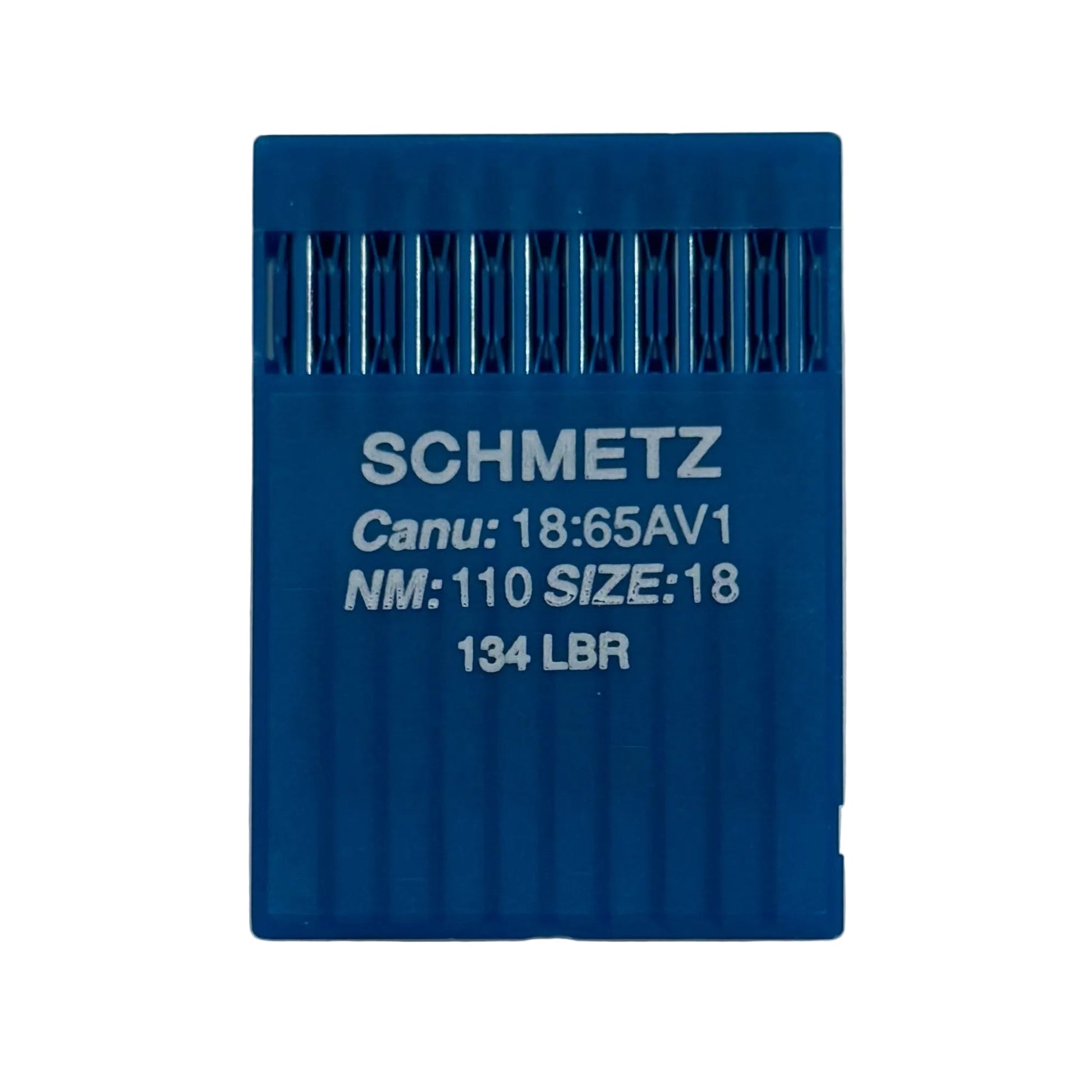

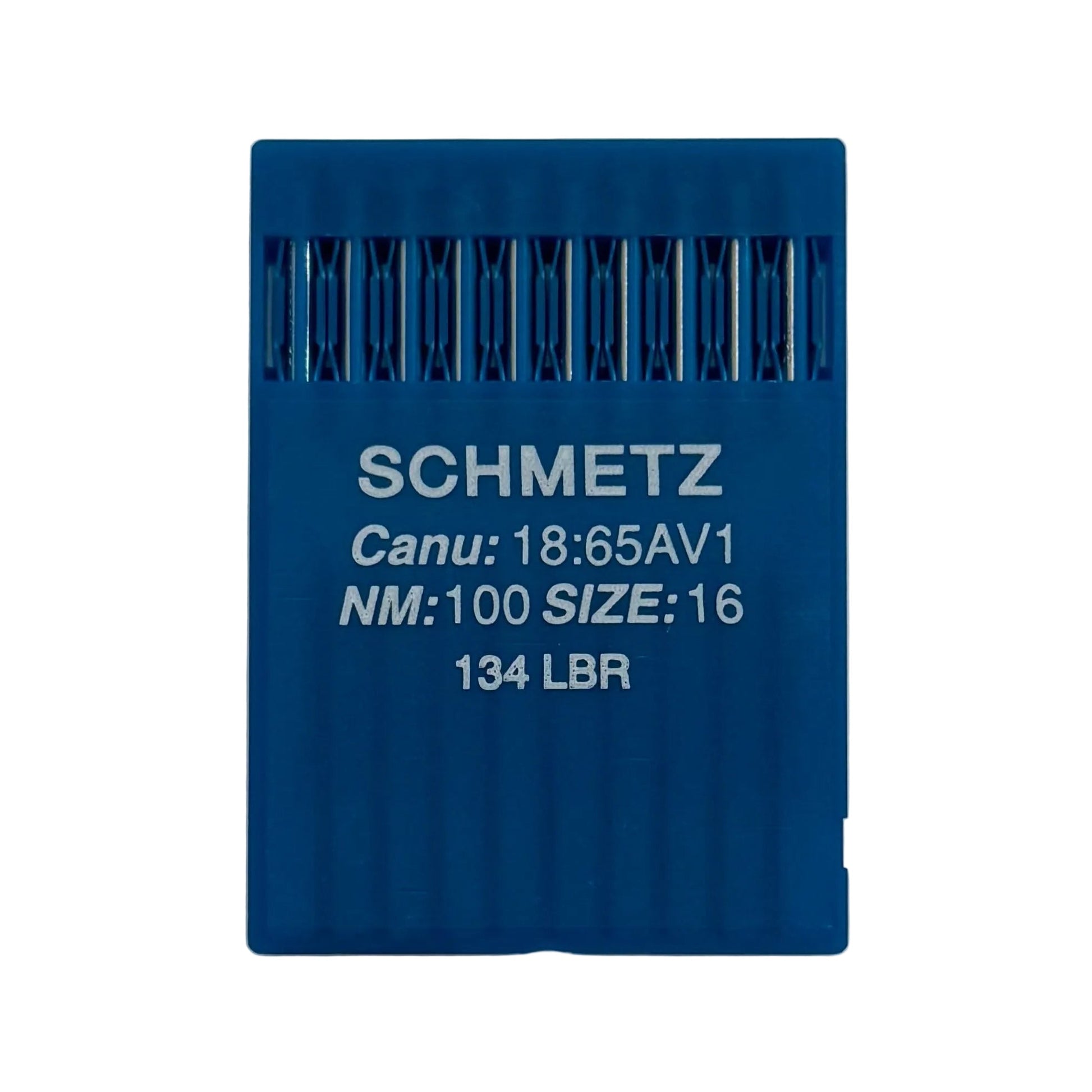

Needles for industrial sewing machines SCHMETZ DPx5 LBR - for leather (10 pcs.)

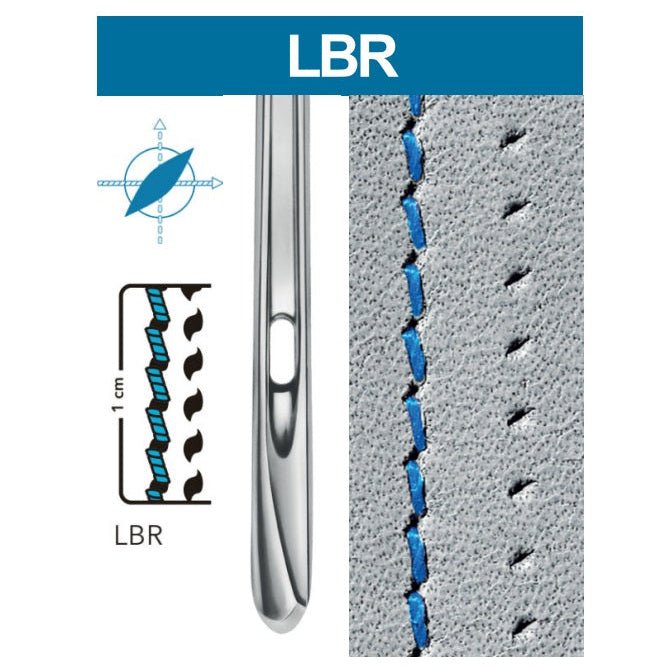

SCHMETZ DPx5 LBR is an industrial lockstitch needle for sewing leather with a LBR (Wide reverse twist point) cutting point. The cut is made at approximately a 45° angle to the thread direction, and the “wide” LBR shape produces a distinctive decorative, raised stitch with a leftward slant.

✨ Why is LBR so sought after for decorative stitching?

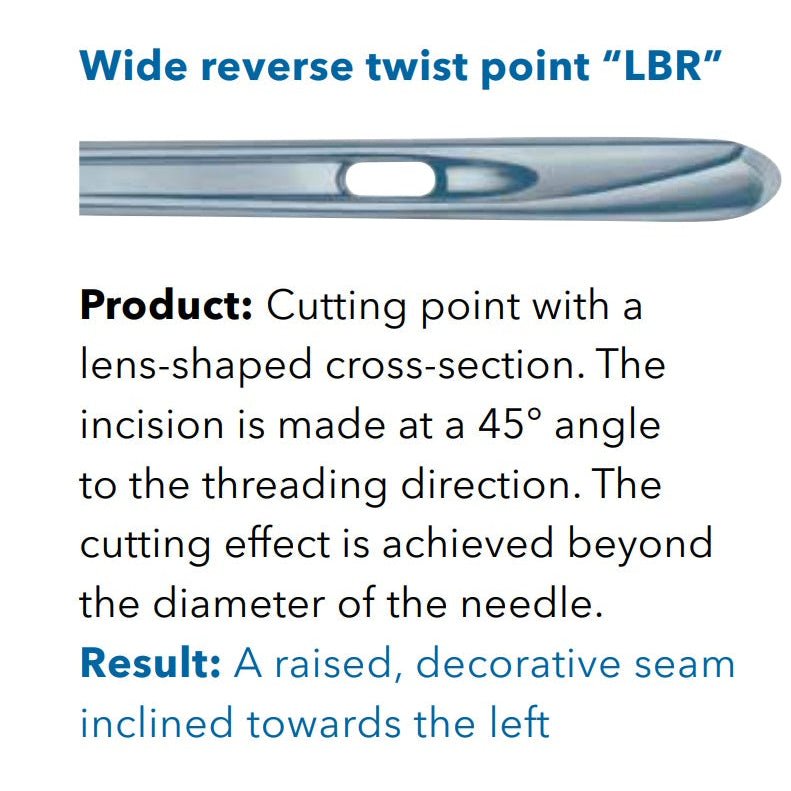

• Lens-shaped cross-section cutting point – a clean, controlled penetration into the leather
• Stronger decorative effect (raised stitch) compared to the classic LR
• The cutting effect is achieved above the needle diameter – the stitch looks “marked” and neat
• Chrome plating reduces friction/heat and extends needle life

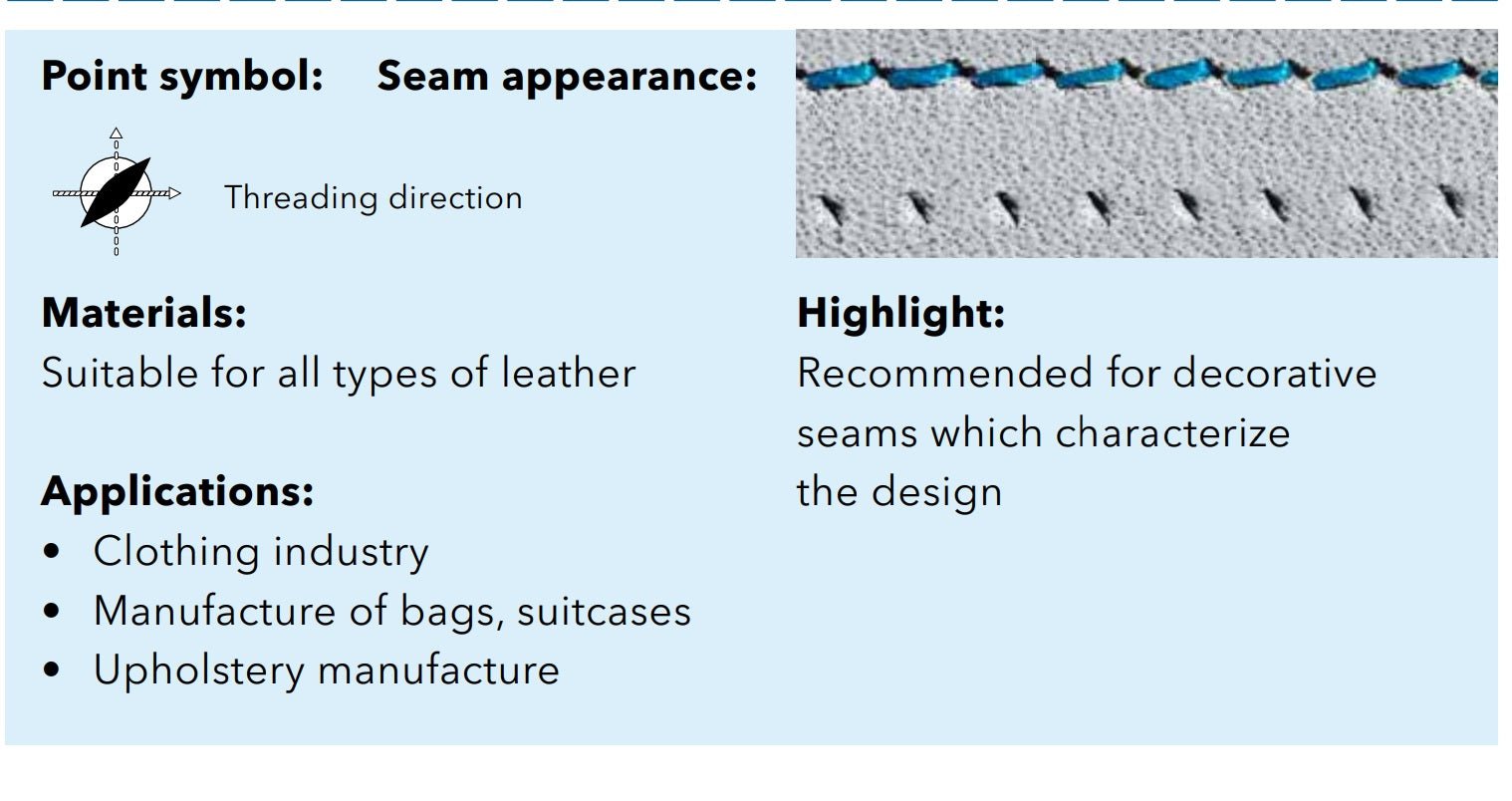

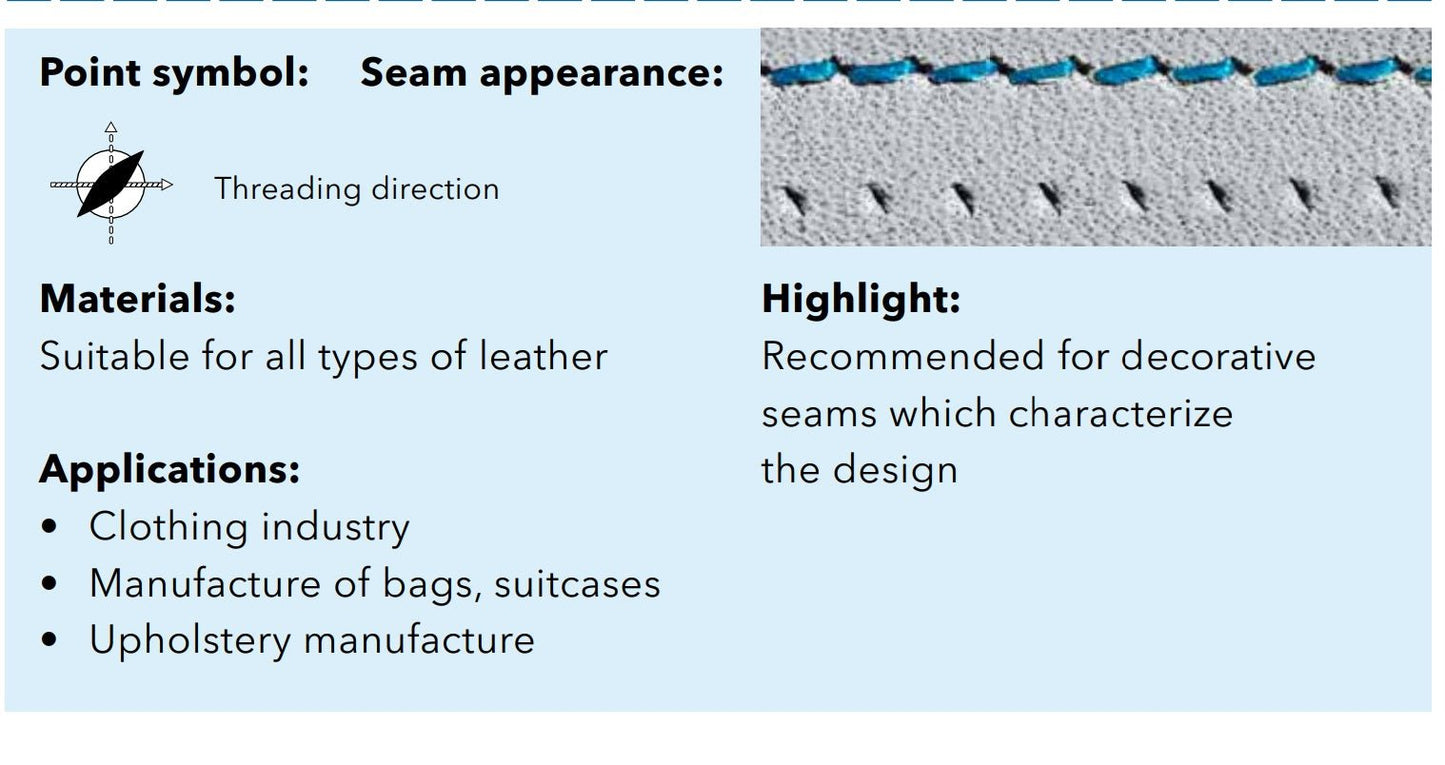

🧵 Suitable materials

• All types of leather (natural and synthetic)

👜 Applications

• Garment industry
• Bags and luggage manufacturing
• Upholstery (furniture, interior trims, etc.)

🧶 Quick thread + needle sizing logic

Needle size is chosen based on application, thread thickness and material hardness/thickness: the thicker the thread and the stiffer the leather, the larger the NM. For decorative topstitching on leather, thicker threads and larger NM are often selected.

🔧 Compatibility

Intended for industrial lockstitch machines that use the 134 LBR / DPx5 LBR system.

📐 Technical data

ℹ️ Note about stitch appearance

The stitch “pattern” can vary depending on the thread take-up direction: the depicted effect usually corresponds to a side-twisted thread; machines with a front take-up may show a slightly different visual slant.
