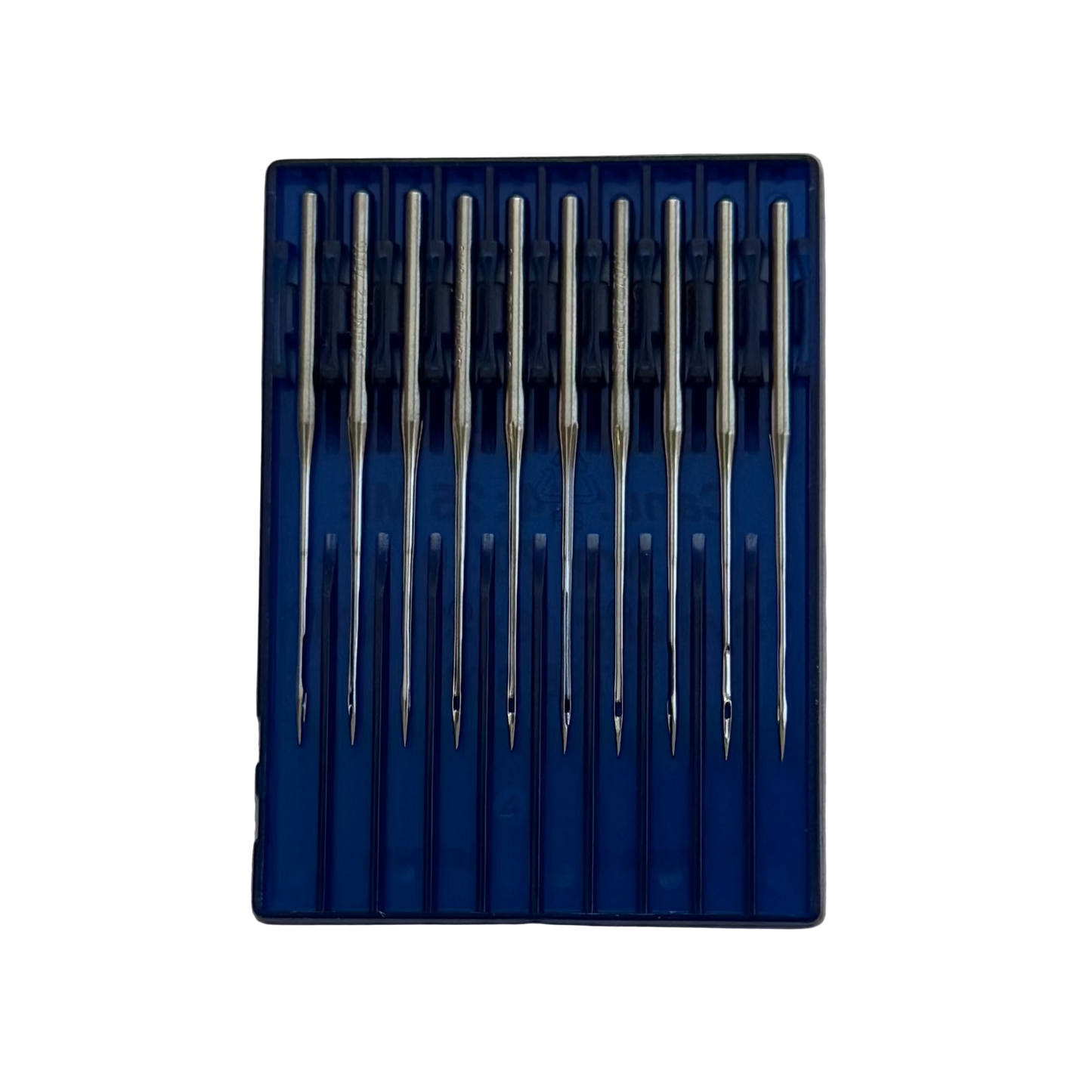

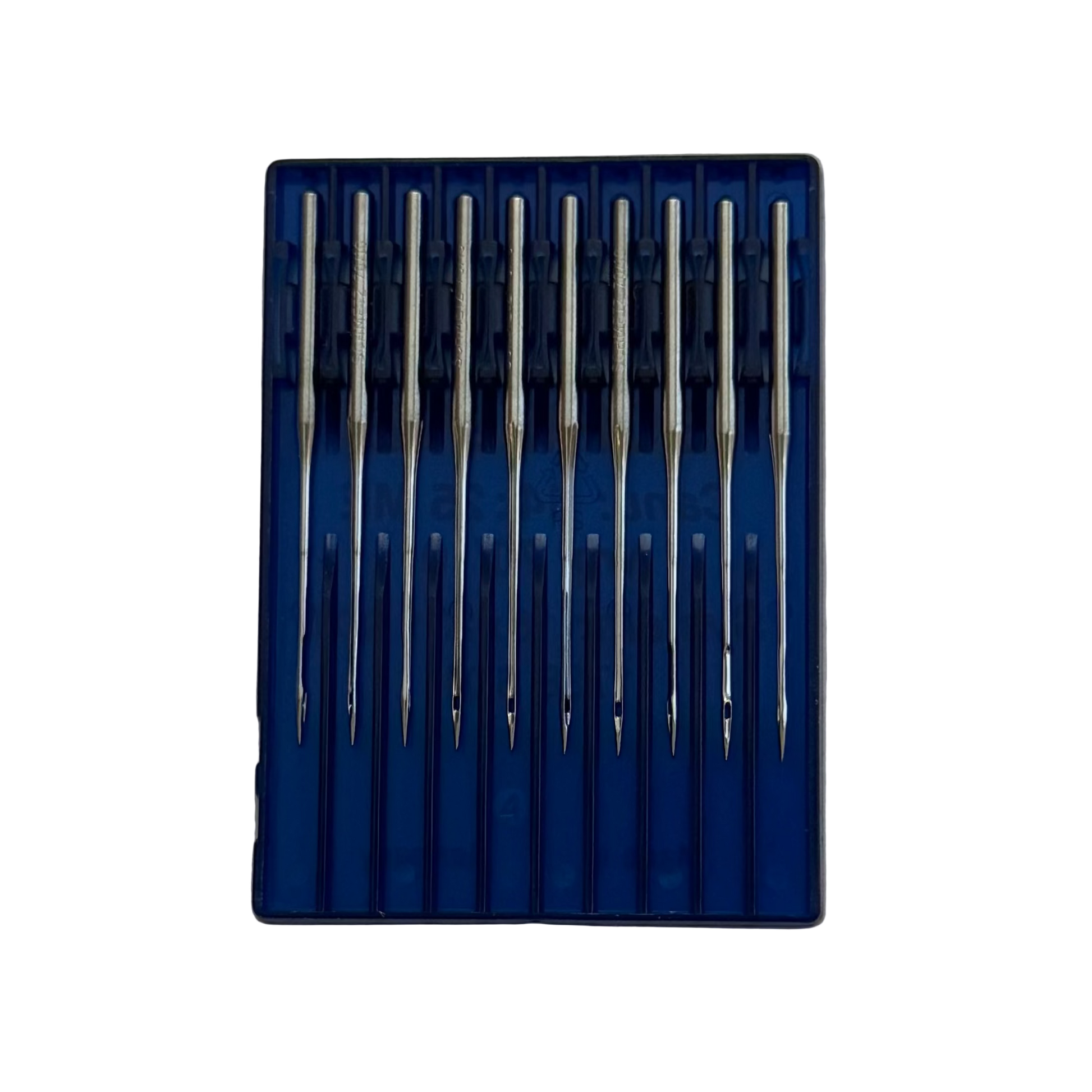

Adhesive needles for industrial sewing machines SCHMETZ DBx1 SD1 – for leather, plastic, and PVC materials (10 pcs.)

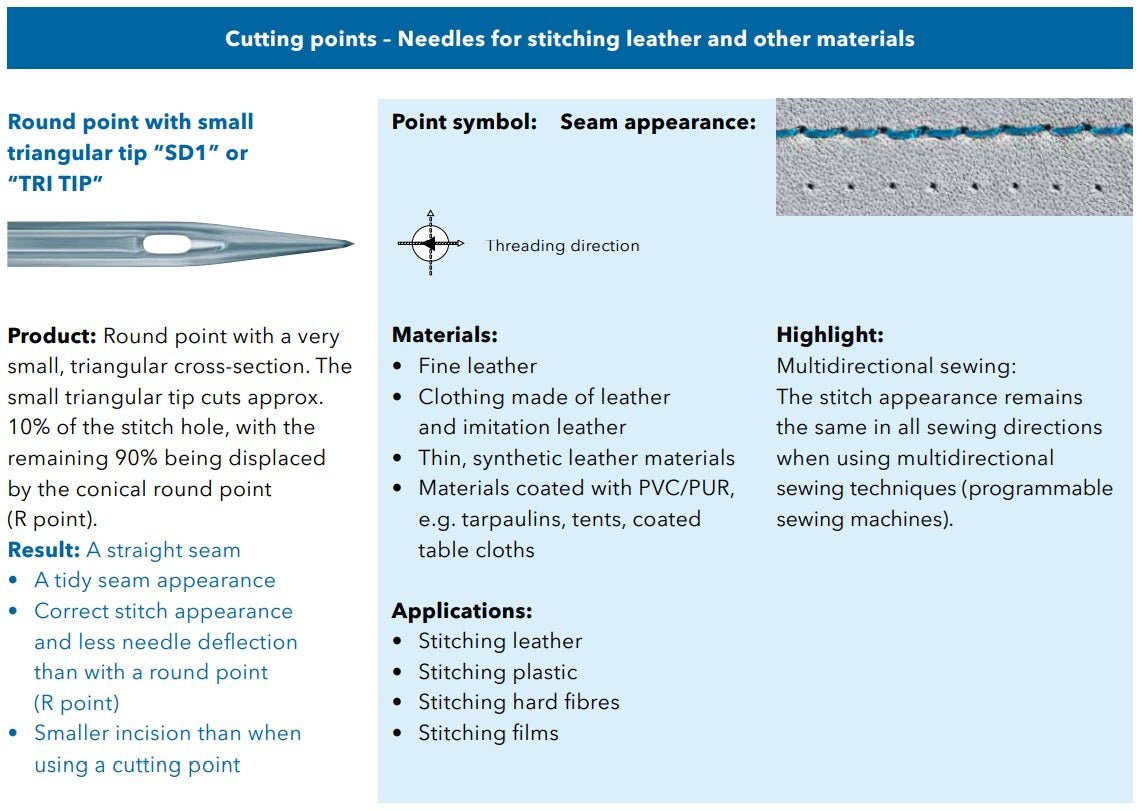

SCHMETZ DBx1 SD1 industrial needles are designed for lockstitch sewing machines when sewing leather and other "difficult" materials. SD1 or "Round point with small triangular tip" is a special fine triangular cutting point that makes a smaller incision than typical cutting needles and ensures a straight, neat stitch even in multidirectional sewing (programmable sewing machines).

🧵 Most Suitable Materials

• Fine leather and leather imitation
• Thin synthetic "leather" materials
• Coated materials with PVC/PUR (tarpaulins, tents, coated tablecloths)
• Hard films, plastic, hard fibers

Results and Advantages

• Straight, visually clean seam with less material distortion
• Precise stitch appearance and less needle deviation compared to a standard round point (R) needle
• Smaller incision in the material than when using a classic cutting needle
• Consistent stitch appearance in all sewing directions (multidirectional)
• Chrome coating for longer durability and smooth sliding

Applications

• Leather sewing (clothing, accessories)
• Sewing of plastic and coated materials
• Joining hard fibers and films

Specification

• Needle system: DBx1 SD1
• Equivalent designations: 16X231 SD1, 287 WH SD1, 1738 (A) SD1

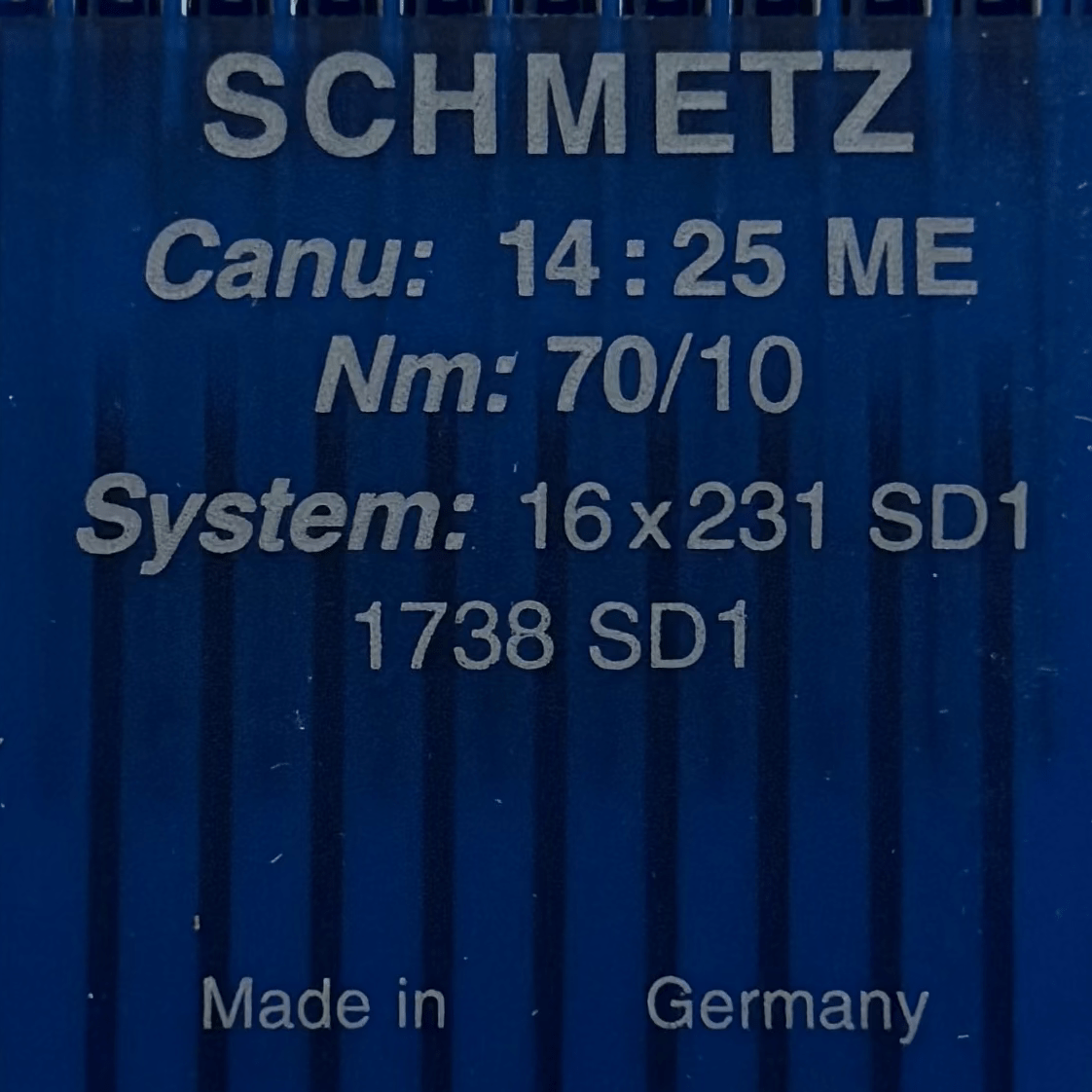

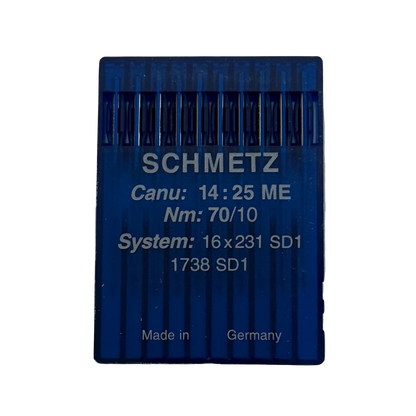

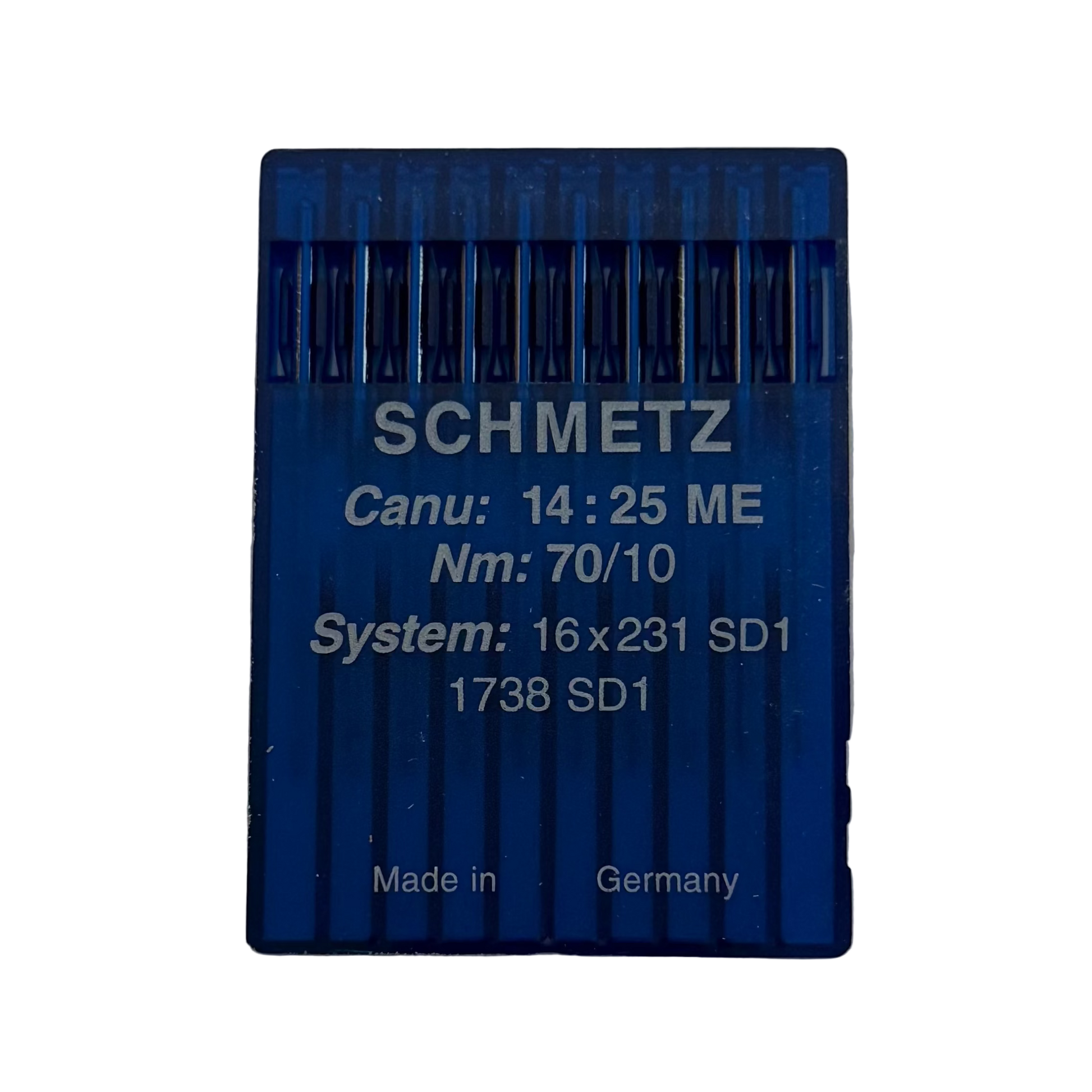

• CANU: 14:25ME1
• Point: SD1 – round point with small triangular cutting tip
• Coating: Chrome
• Shank diameter (ø): 1.62 mm
• Total length: 37.5 mm
• Length to eye: 33.9 mm
• Shank flat: no flat (full cylindrical shank)
• Blade shape: straight
• Grooves: 1
• Stitch type: lockstitch (for industrial lockstitch machines)

Compatibility: DBx1 SD1, 16X231 SD1, 287 WH SD1, 1738 (A) SD1
