Adhesive Needles for SCHMETZ DPx5 LL Industrial Sewing Machines - Leather (10 pcs.)

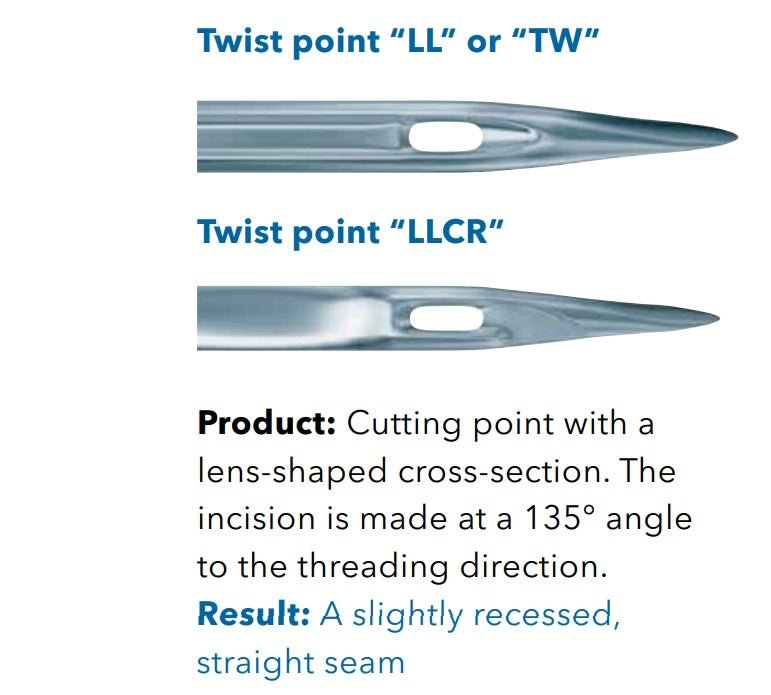

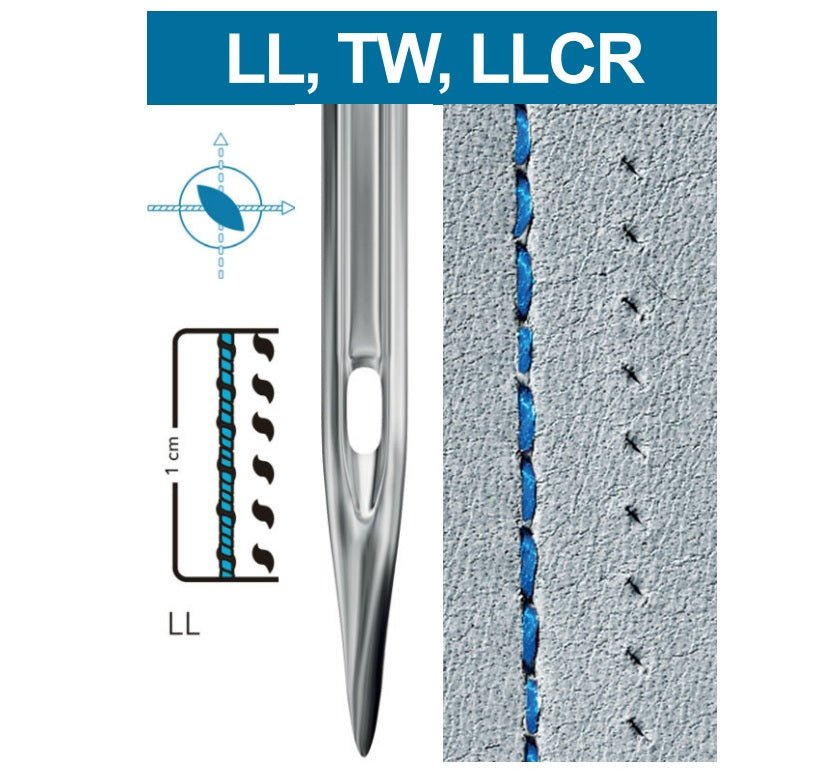

SCHMETZ DPx5 LL are industrial sewing machine needles for leather with a LL (Twist) point shape. The lens-shaped cross-section and a notch at ~135° angle to the thread direction create very straight, slightly recessed seams without leather tears. The chrome coating reduces wear and overheating, ensuring long service life in intensive work.

🧵 Suitable materials

• All types of natural and synthetic leather
• Leather + textiles (bag, lining combinations)
• Coated materials, soft PVC, films
• Thicker materials – belt, shoe, suitcase parts

👞 Typical applications

• Shoe manufacturing and repair
• Making bags, belts, wallets, and suitcases
• Creating especially straight decorative seams on leather
• Upholstery/leather padding work

🎯 LL (Twist) point advantages

• Very straight seam with a clean cut in the leather
• Reduced hole “pulling” and material damage
• Stable stitch formation even with thicker threads

🔧 Compatibility

Suitable for industrial lockstitch machines designed for DPx5 series needles.

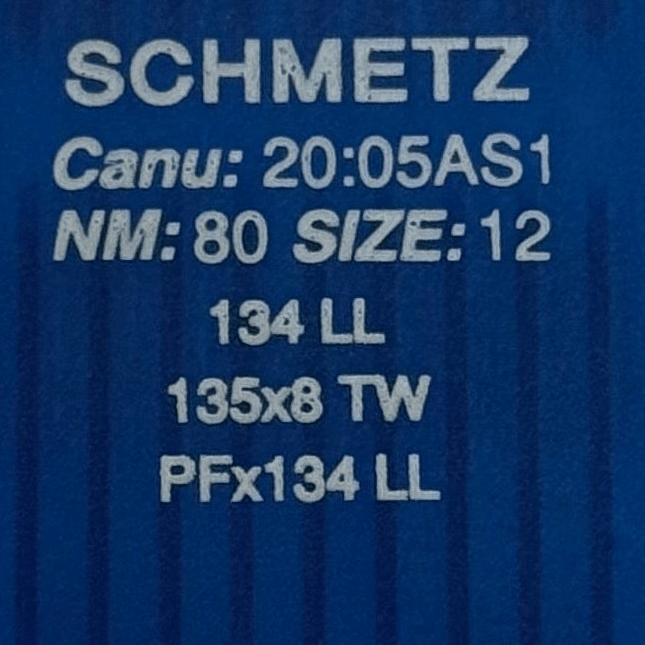

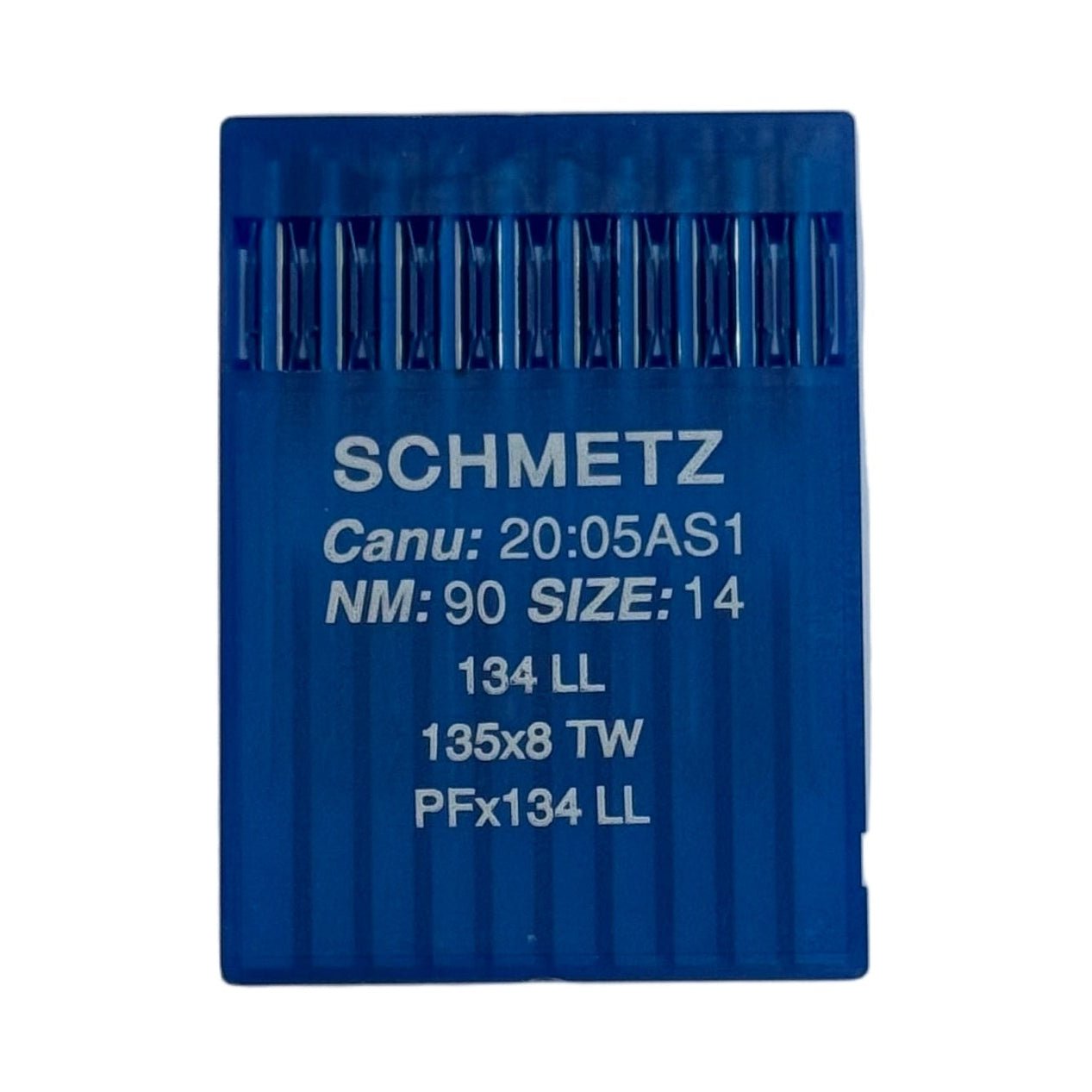

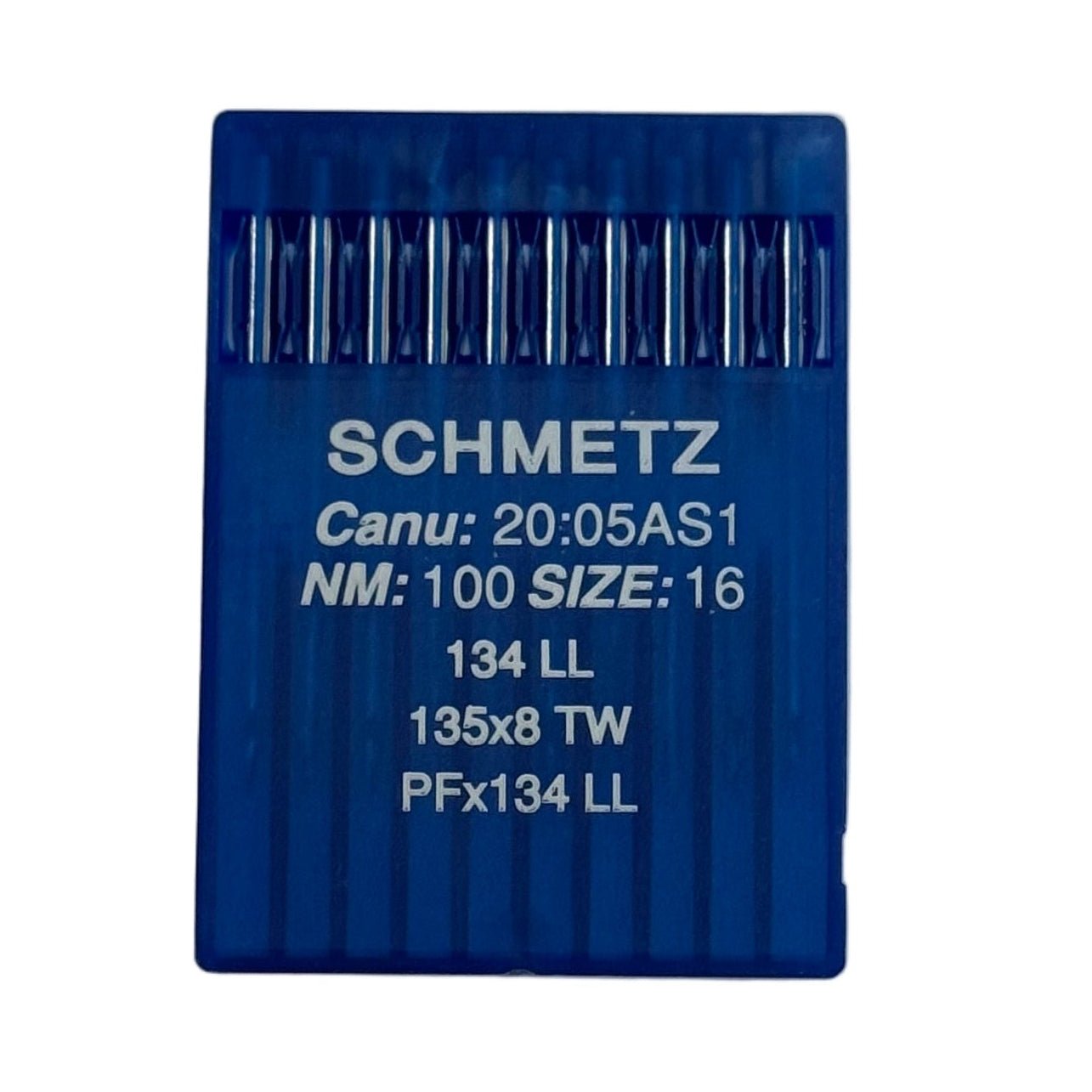

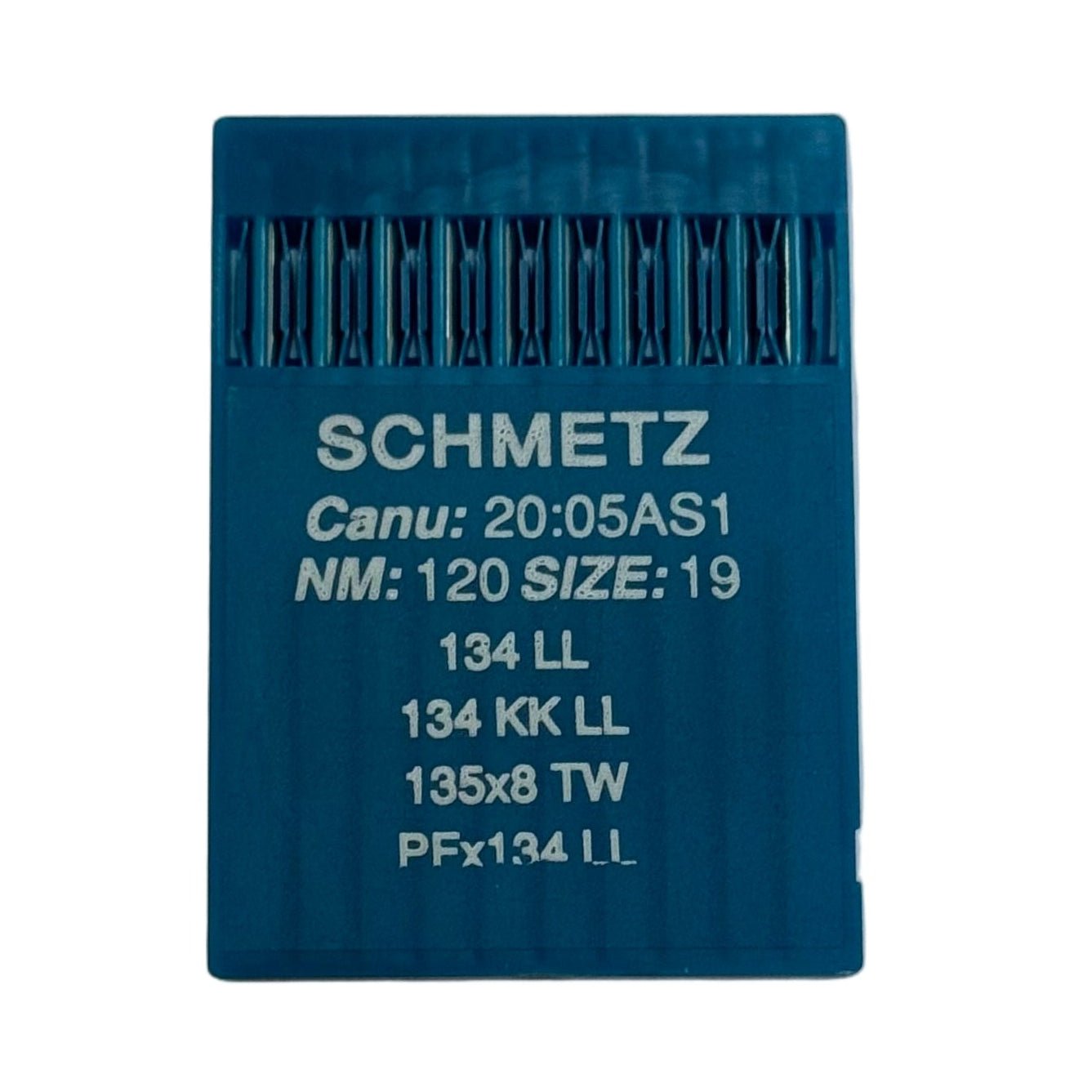

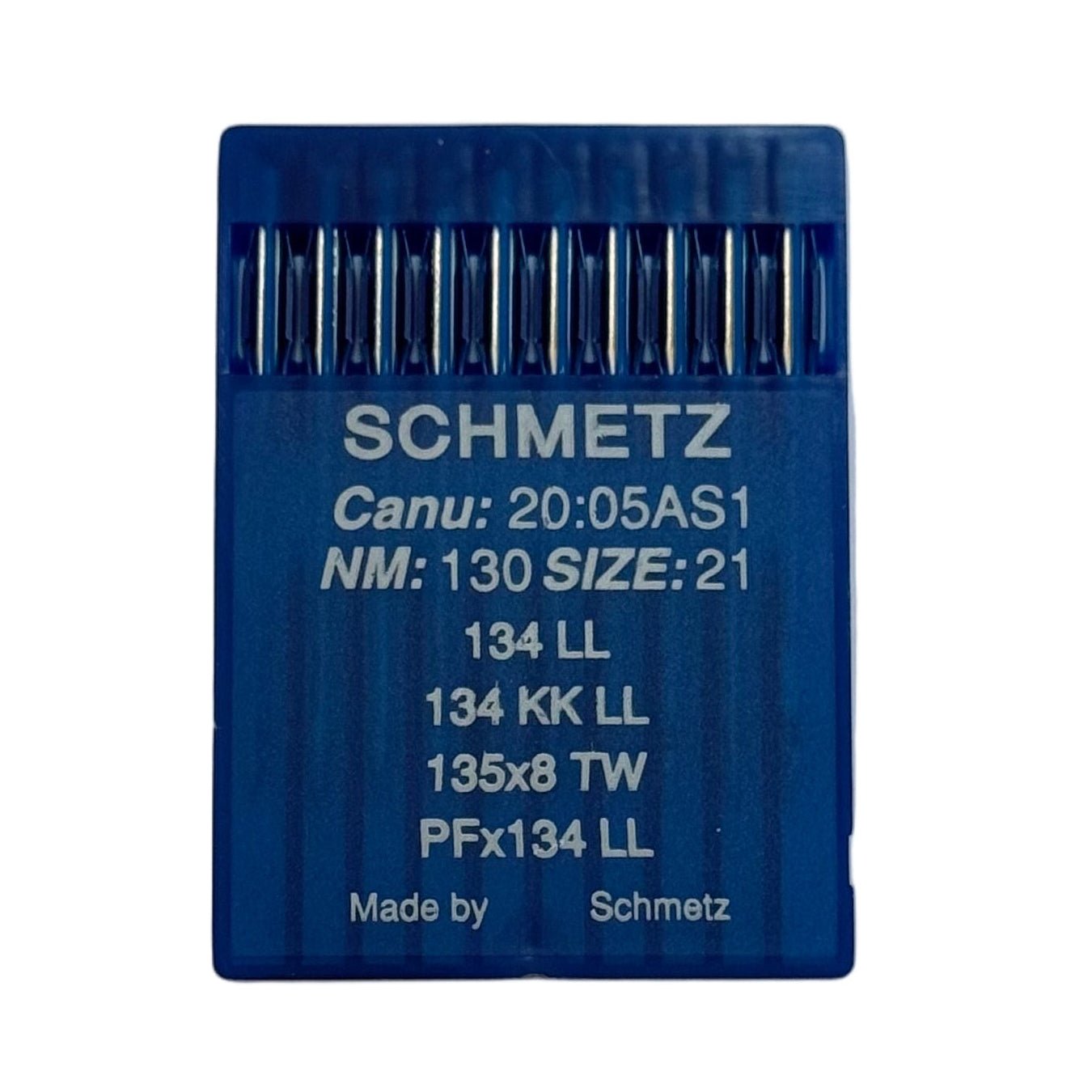

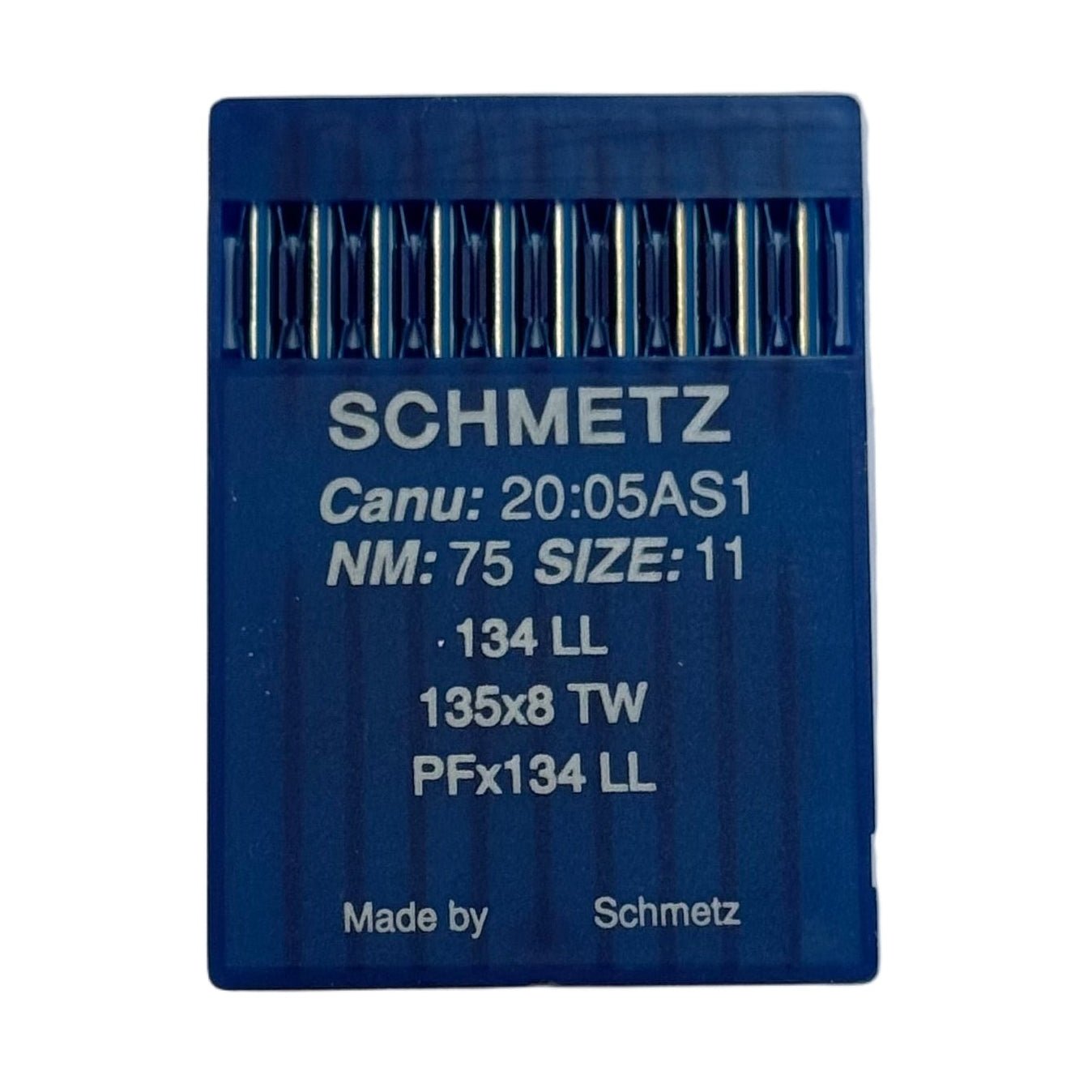

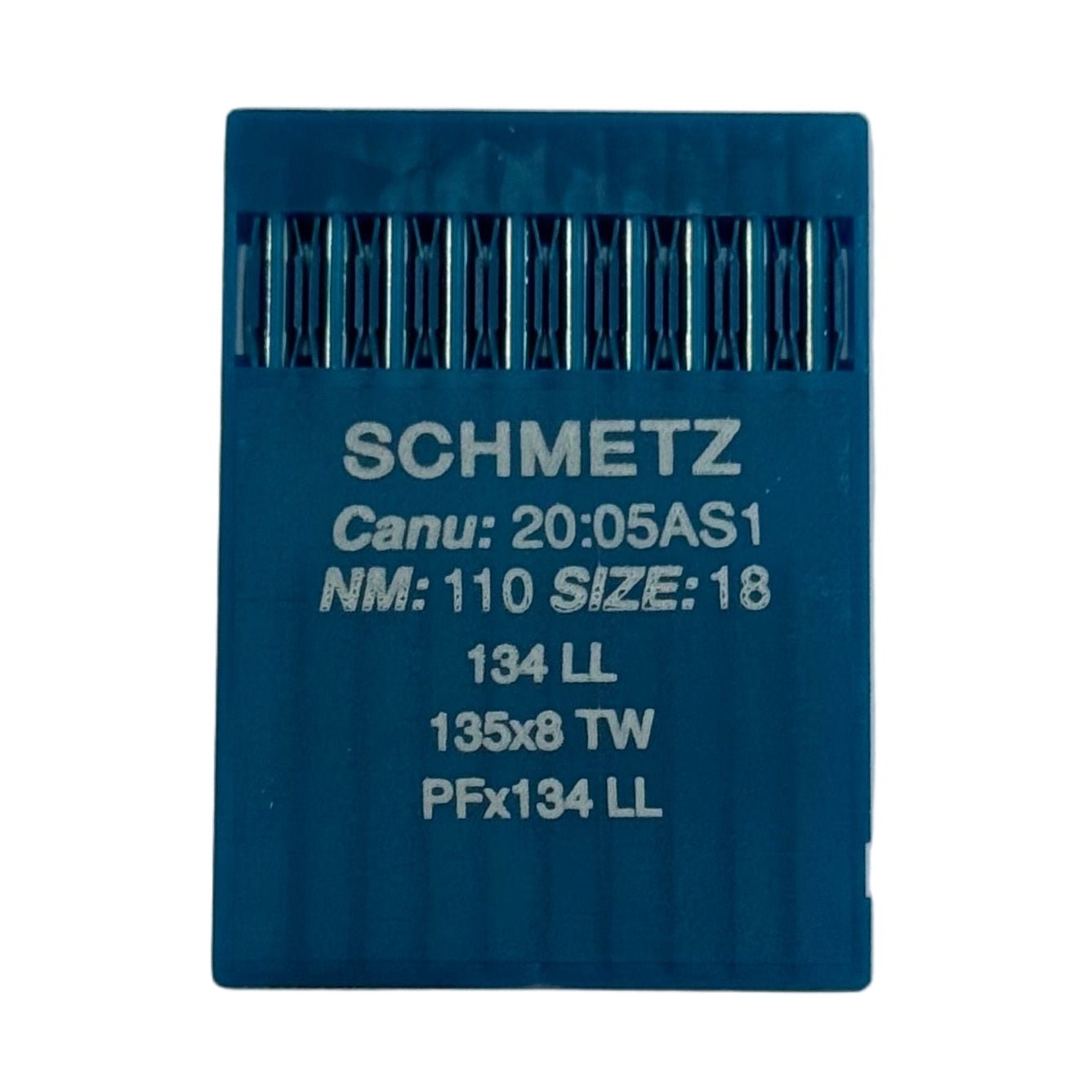

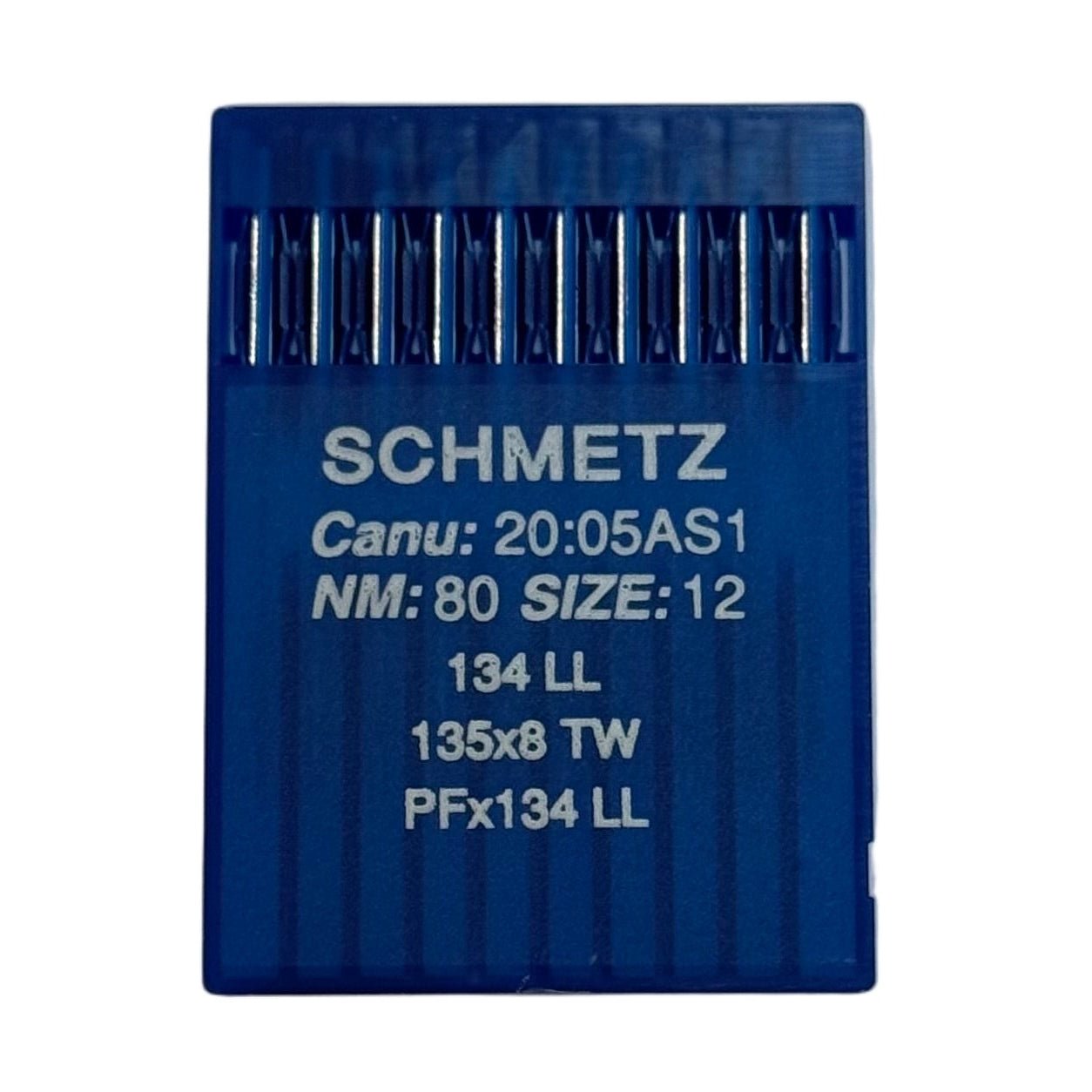

Needle systems (equivalents): 134 LL, 135X8 TW, PFX134 LL, DPx5 LL

📐 Technical data

• CANU: 20:05AS1
• Point type: LL – Twist point
• Coating: Chrome
• Shank Ø: 2.0 mm
• Total length: 38.5 mm
• Length to eye: 33.9 mm
• Shank flattening: none (no flattening)
• Blade shape: straight
• Grooves: 1
• Stitch type: Lockstitch

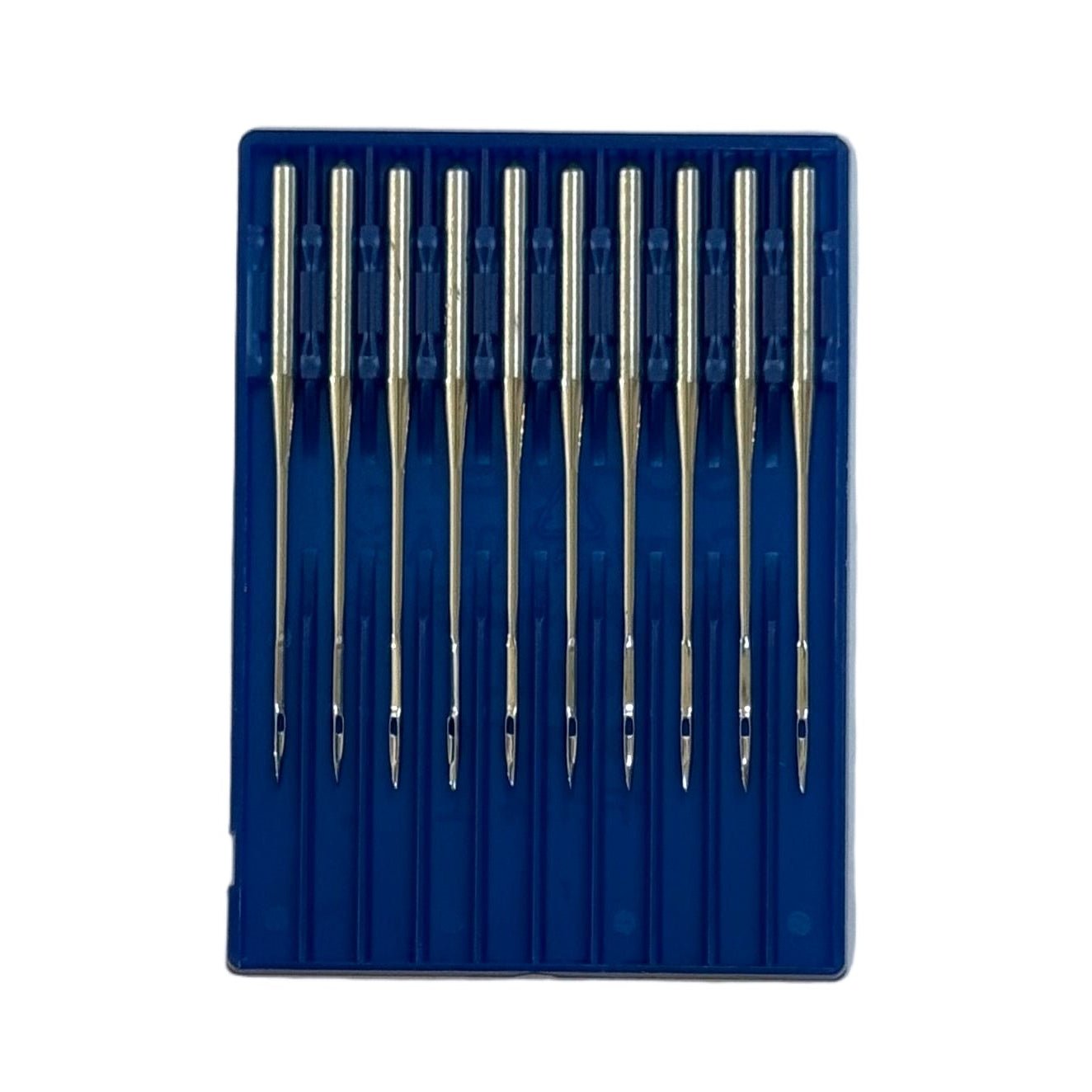

• Packaging: 10 needles

🧶 Thread recommendations (for leather)

Choose thread thickness according to seam type and leather thickness; for thicker leather – larger needle and thread size.

• Decorative/topstitching: polyester or polyamide ~tex 75–150 (No. 20–8) with needle NM 120–160
• Medium seams: polyester ~tex 50–75 (No. 40–30) with needle NM 110–140
• Extra durable seams in high-wear areas of shoes (e.g., heel zone): polyester ~tex 60–75 with needle NM 110–160

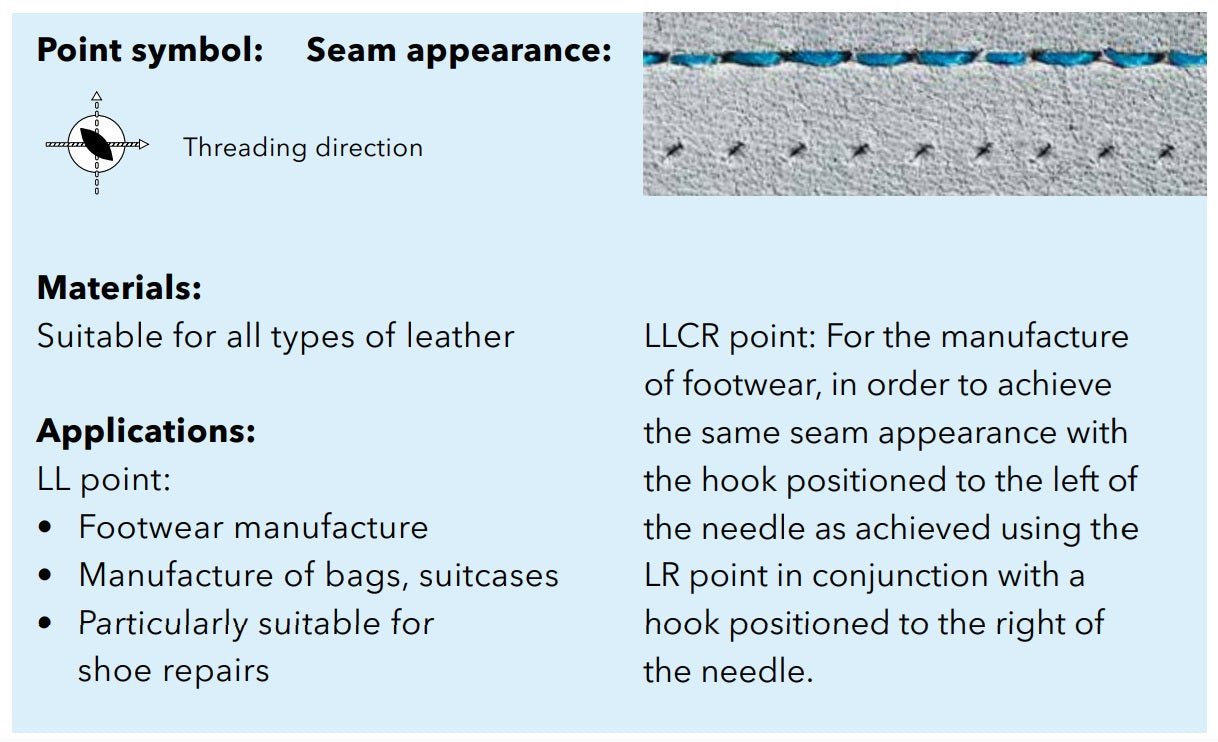

ℹ️ Useful note

If an identical seam appearance is required on machines with the hook positioned to the left of the needle, use the related point LLCR. For standard equipment, LL provides a very straight seam.
