Adhesive Needles for Industrial Sewing Machines SCHMETZ DPx5 D - Leather (10 pcs.)

SCHMETZ DPx5 D are industrial sewing machine needles for leather with D (Triangular Point) triangular cutting point. The needle tip has a triangular cross-section that provides a very strong cutting effect and a straight, distinct stitch line. Ideal for hard, dry leather and thicker technical materials. Chrome coating reduces friction and heat, ensuring long service life during intensive work.

🧵 Suitable materials

• Hard, dry leather (including multiple layers)
• Heavy footwear, work/maintenance shoes (e.g., safety boots)
• Upholstery and furniture padding
• Plastic, cardboard, thick pressboard, paper

✨ Where the D needle excels

• Coarse and regular seams in hard leather and technical materials
• Cross seams where a secure, durable stitch is needed
• Manufacture of heavy and protective footwear
• Furniture and automotive upholstery sewing
• Technical products made of plastic and cardboard

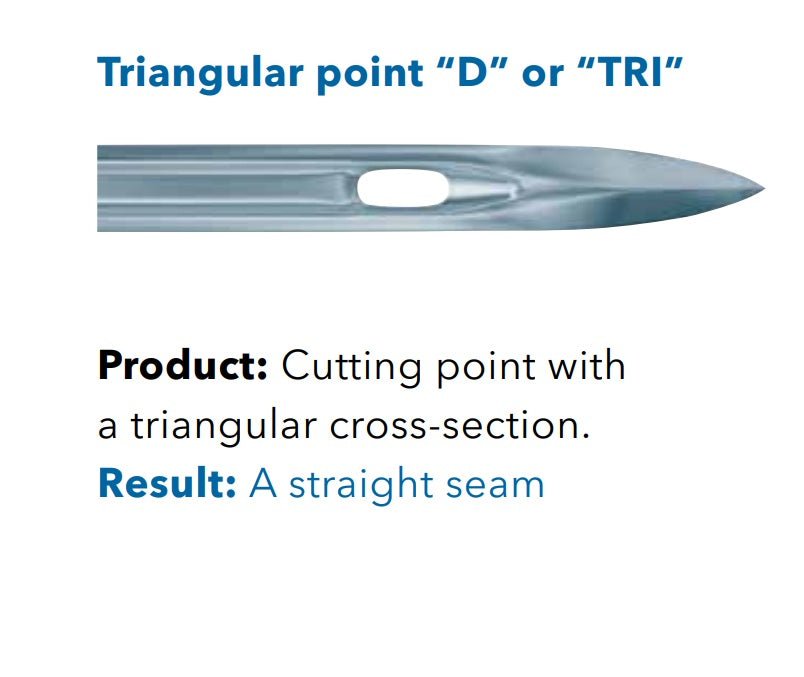

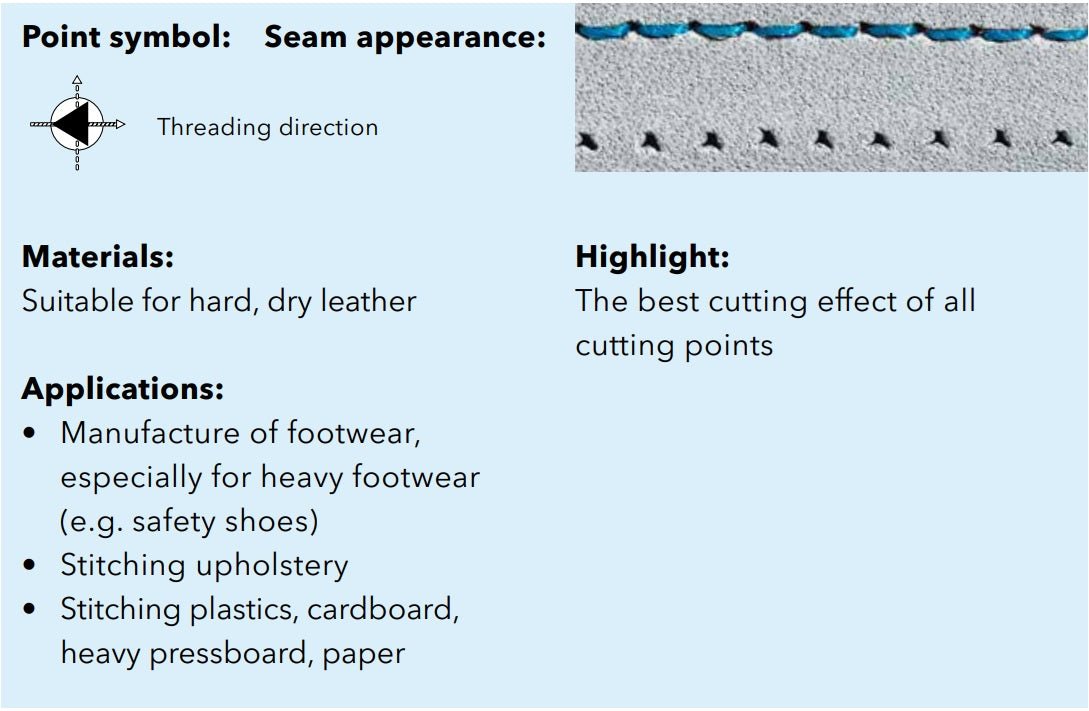

🎯 Advantages of D (Triangular Point)

• Strongest cutting effect among cutting points – easily cuts hard material
• Straight seam with clearly visible stitch pattern
• Very suitable for areas where mechanical strength and secure connection
• are important

Stable operation even with thicker threads and multiple material layers

🧶 Recommended threads for leatherChoose needle size and thread size

according to material thickness and seam purpose – the thicker and harder the leather, the larger the needle and coarser the thread.

🔧 CompatibilitySuitable for industrial lockstitch

machines using 134 series needles. Needle systems (equivalents):

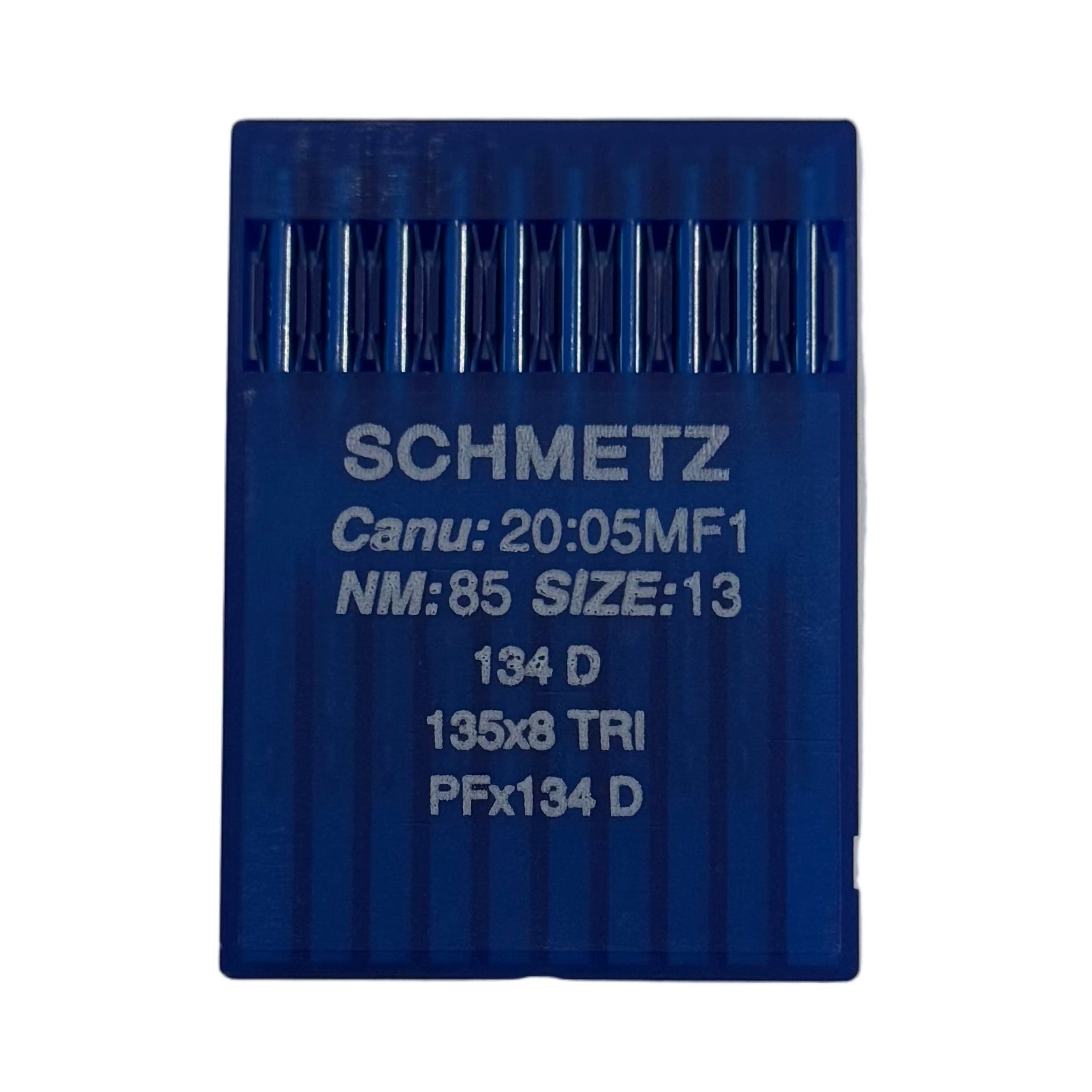

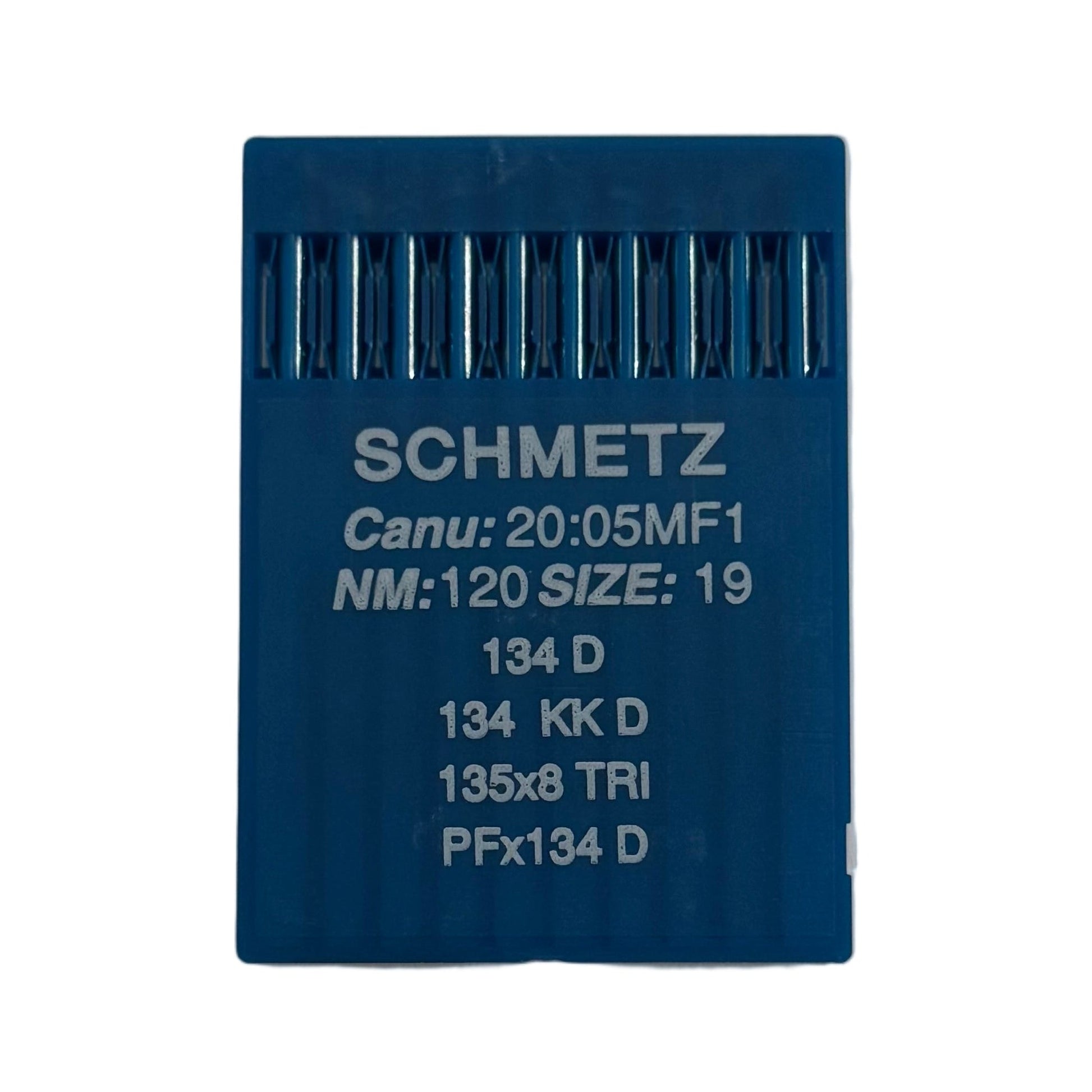

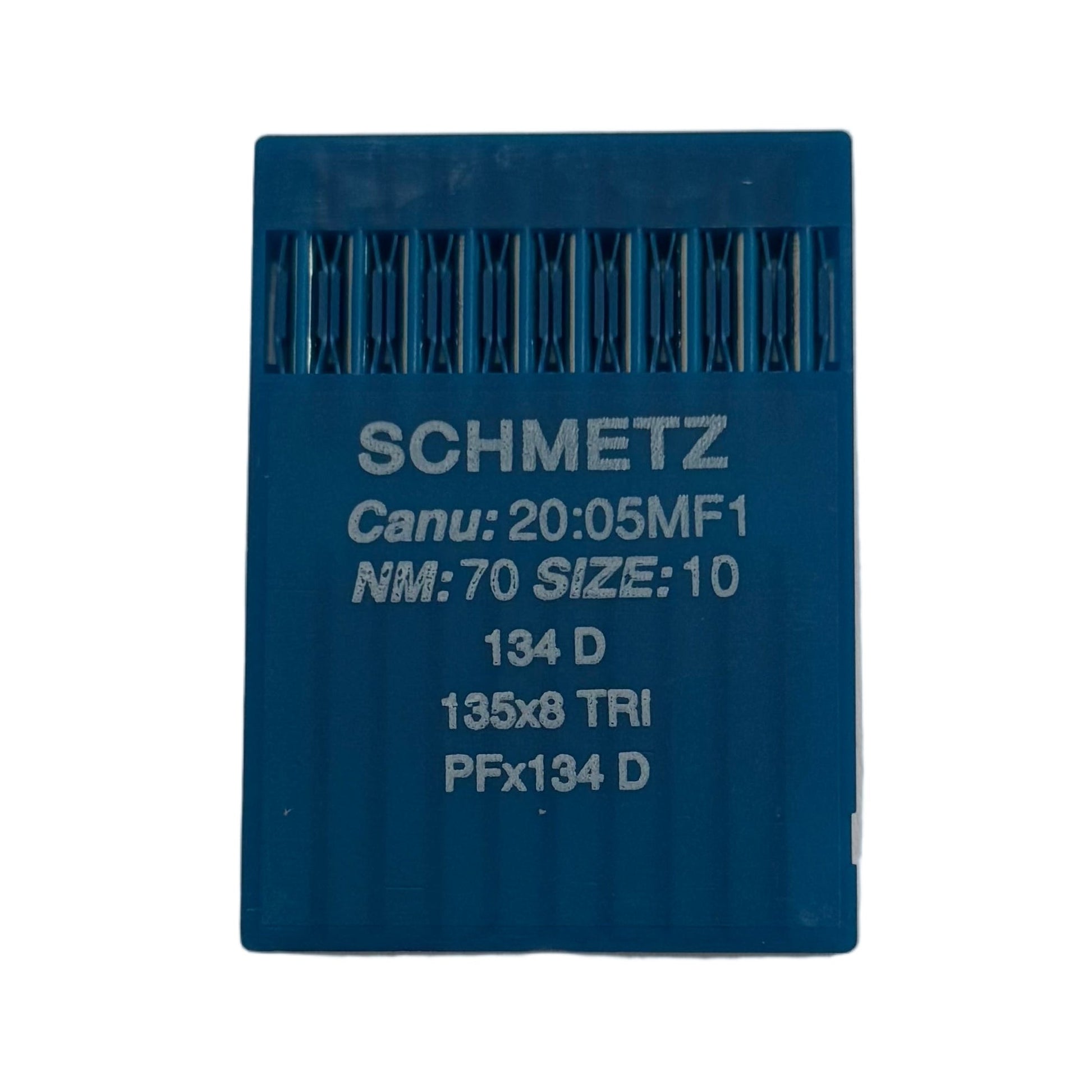

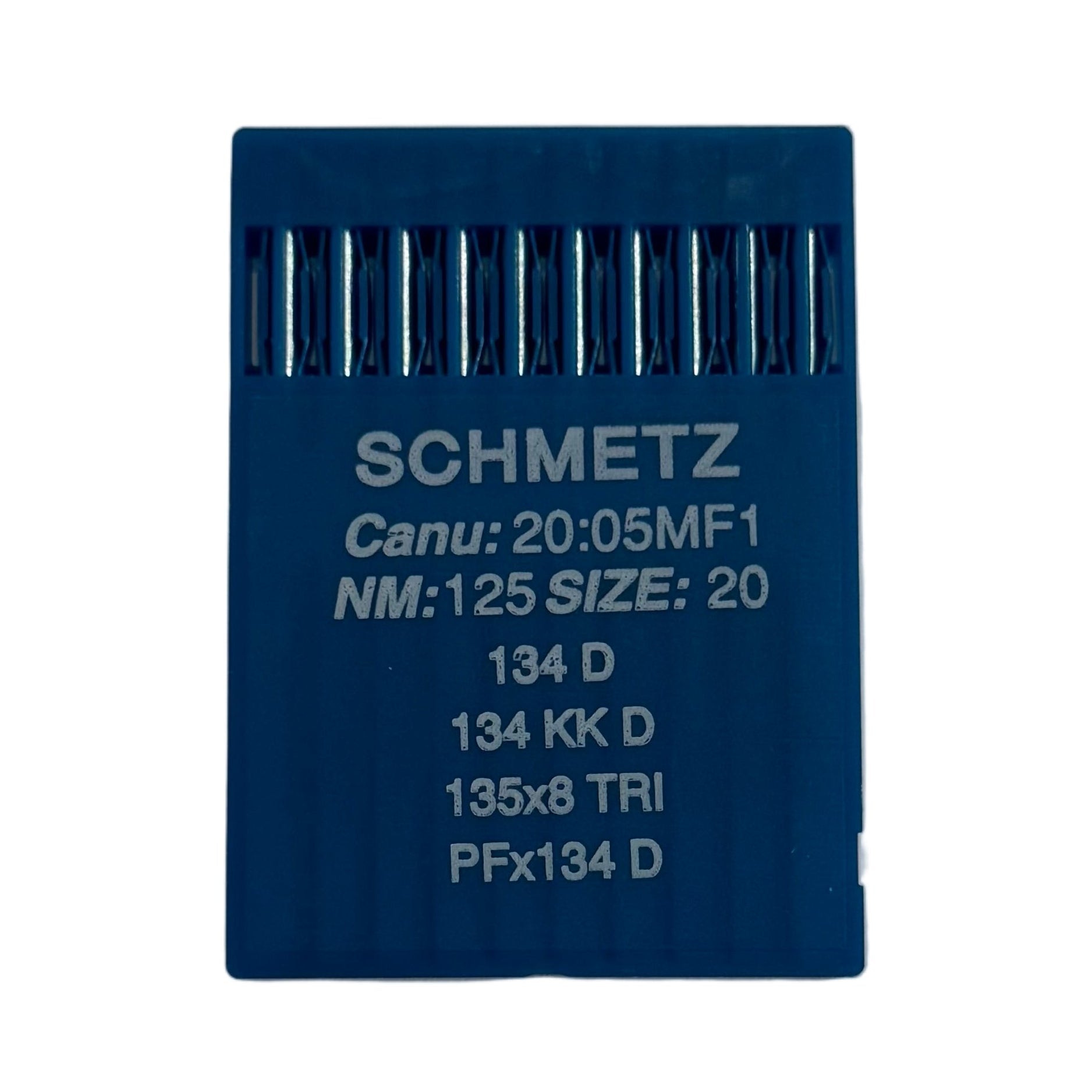

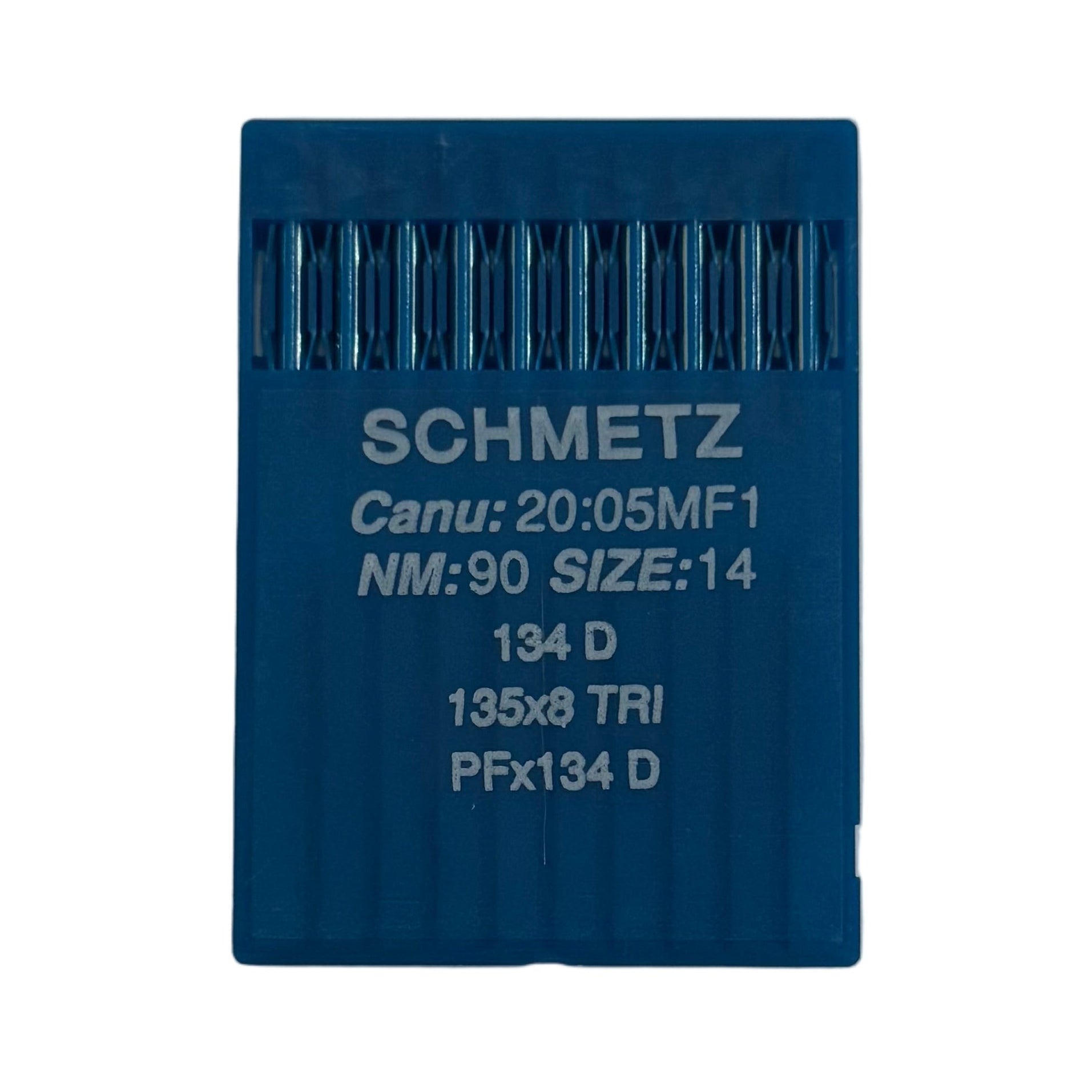

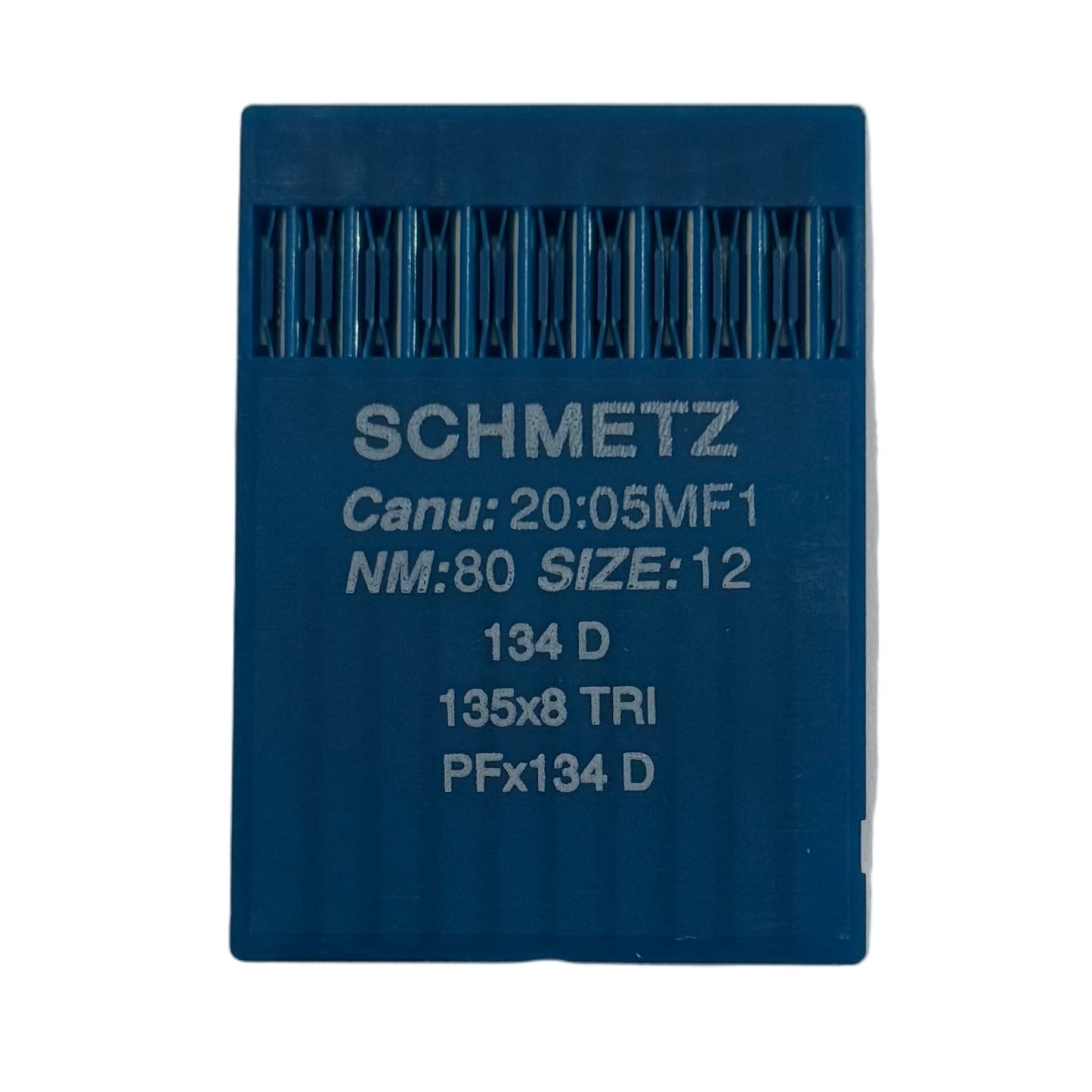

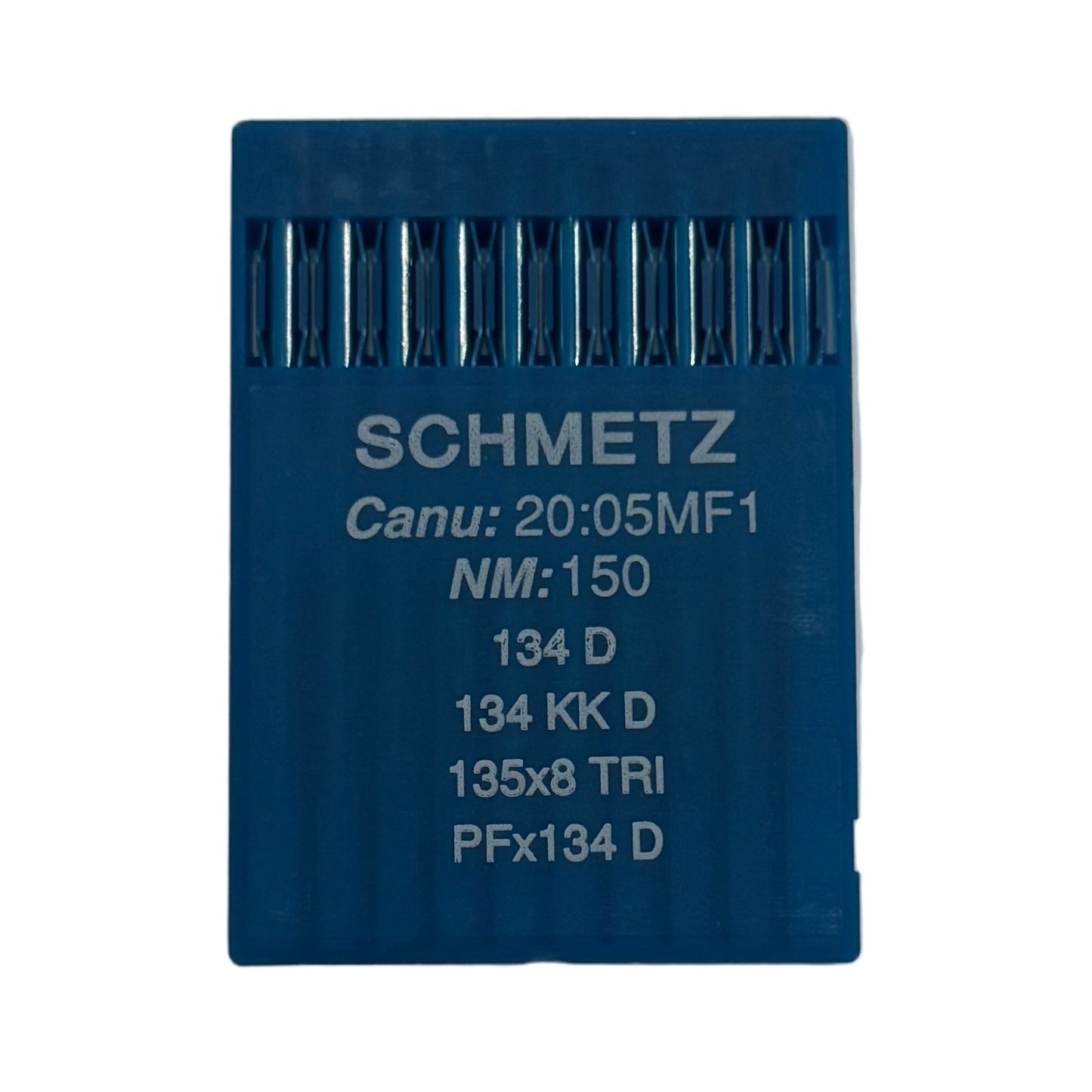

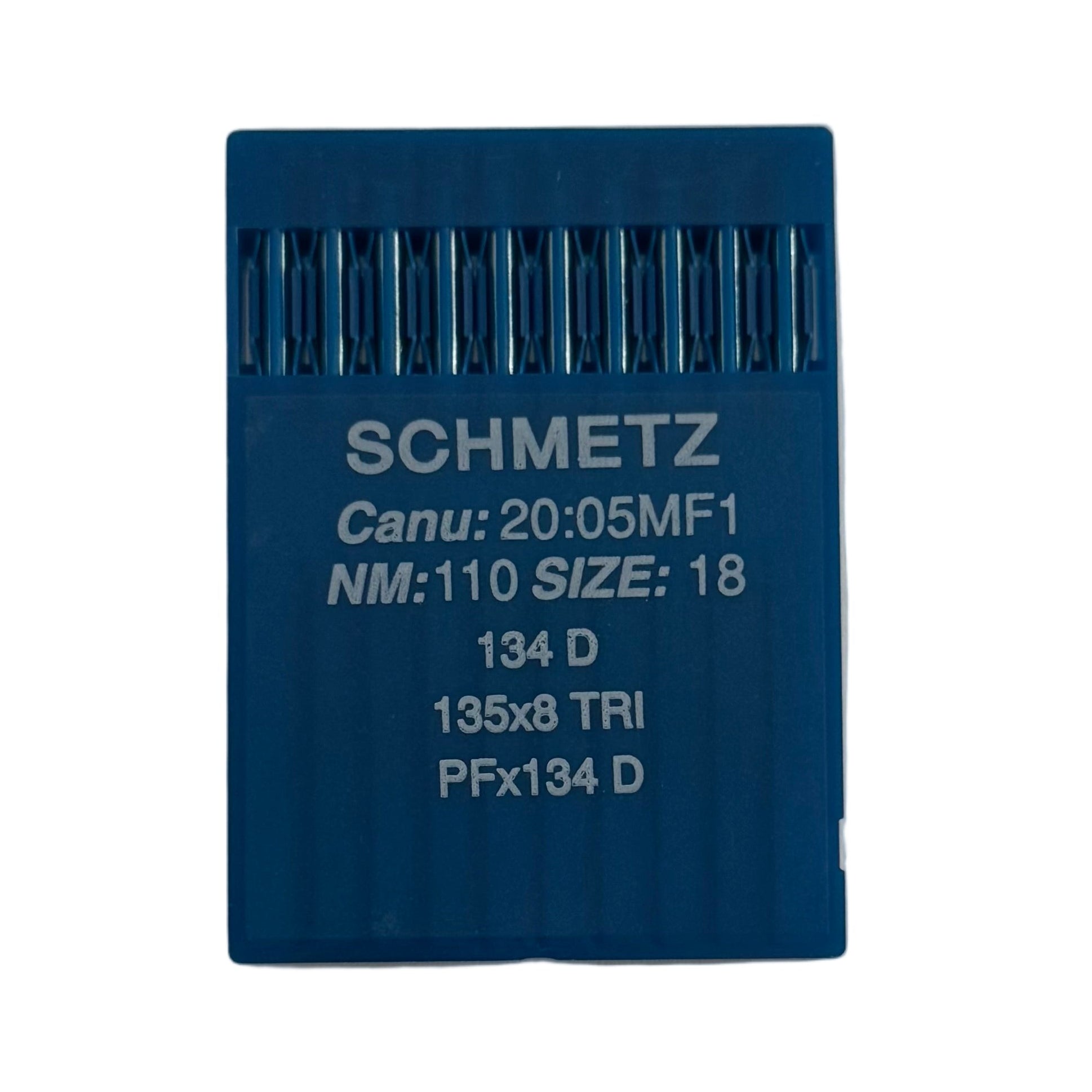

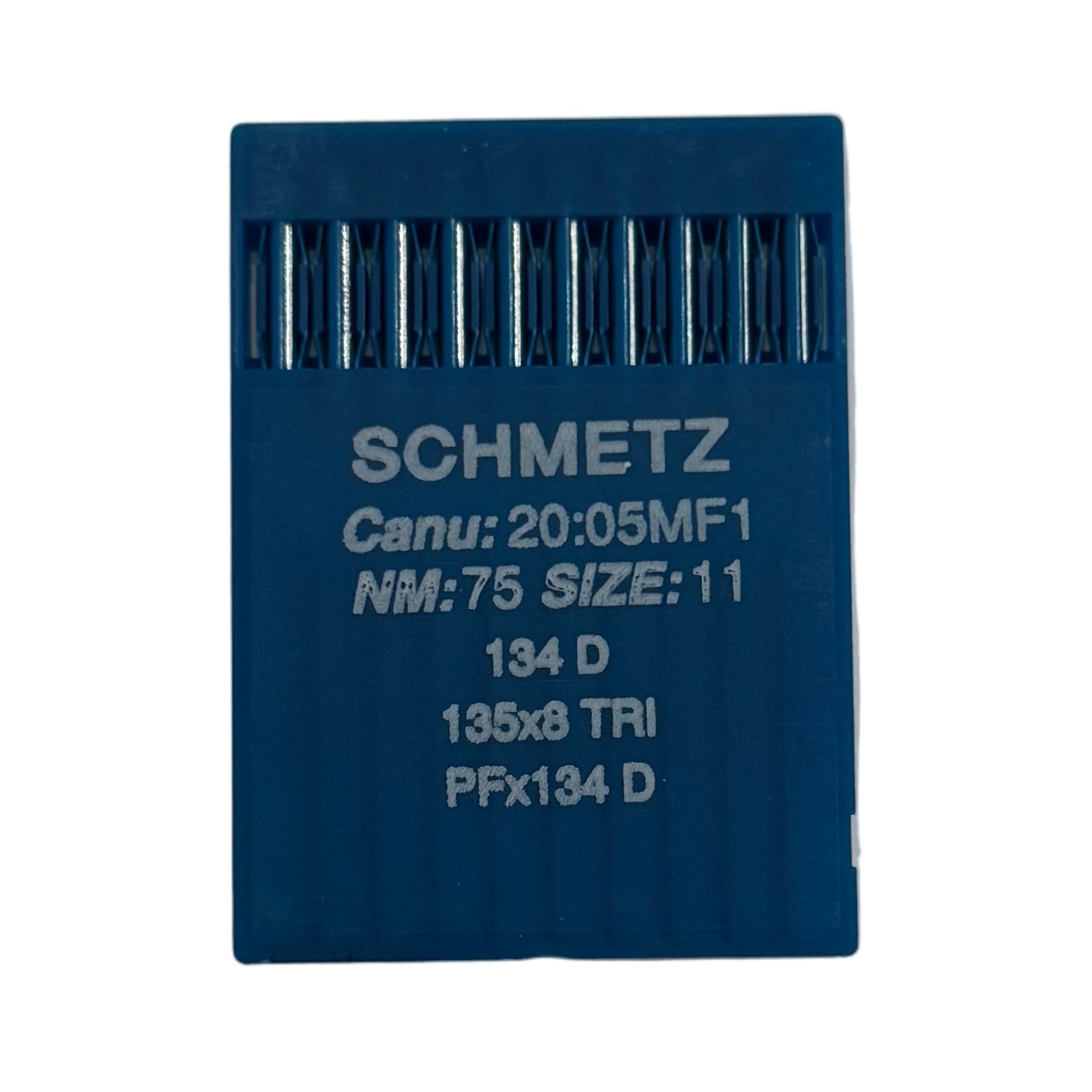

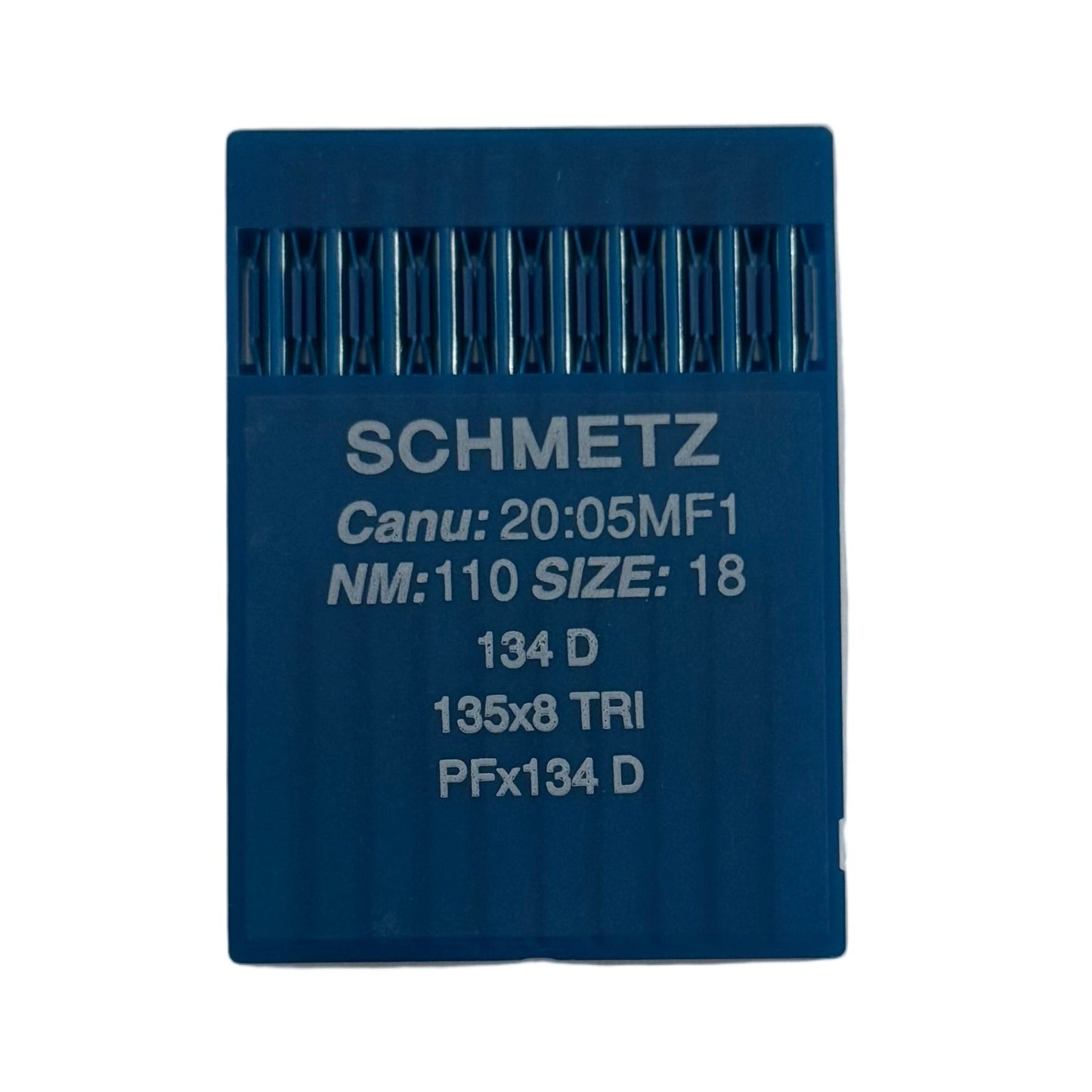

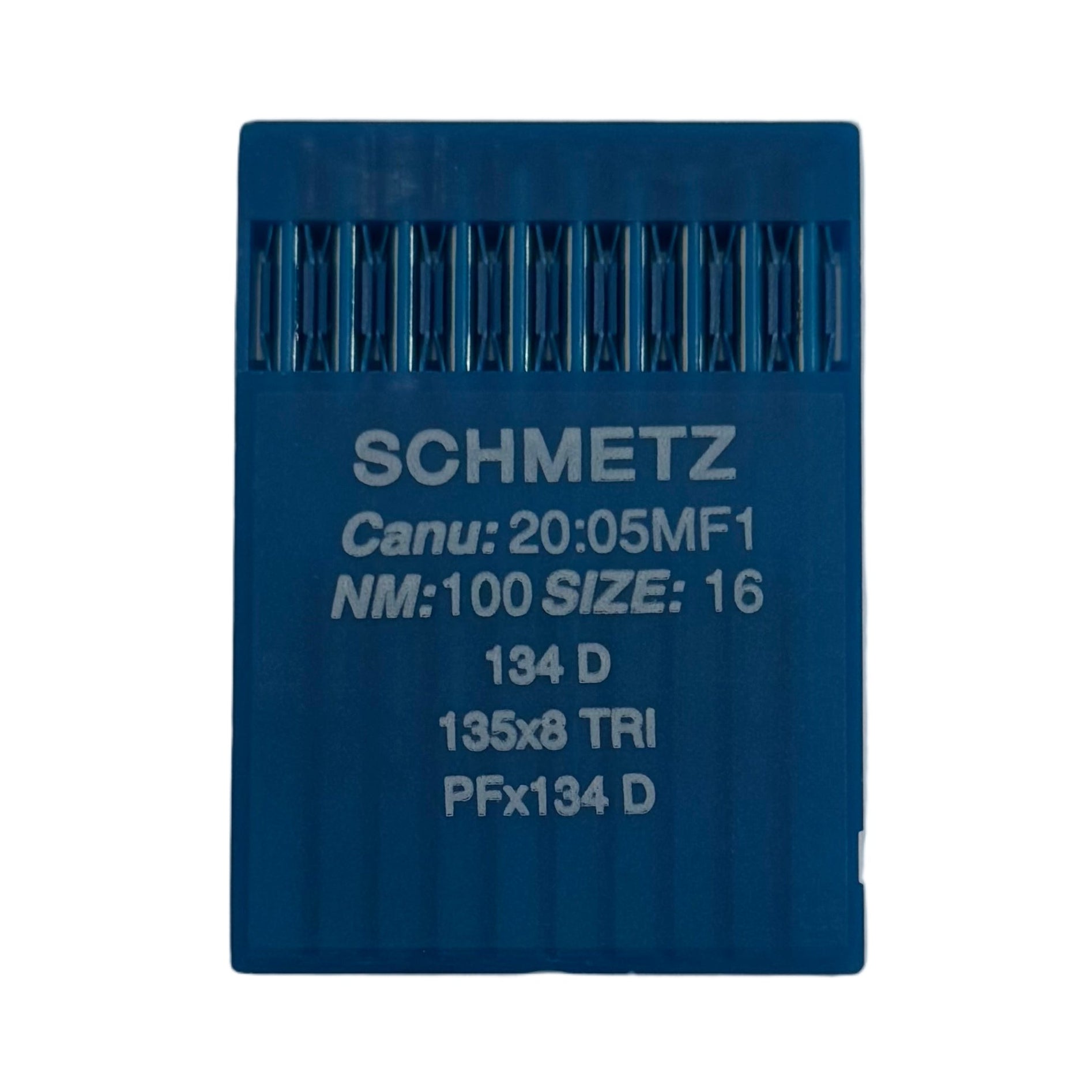

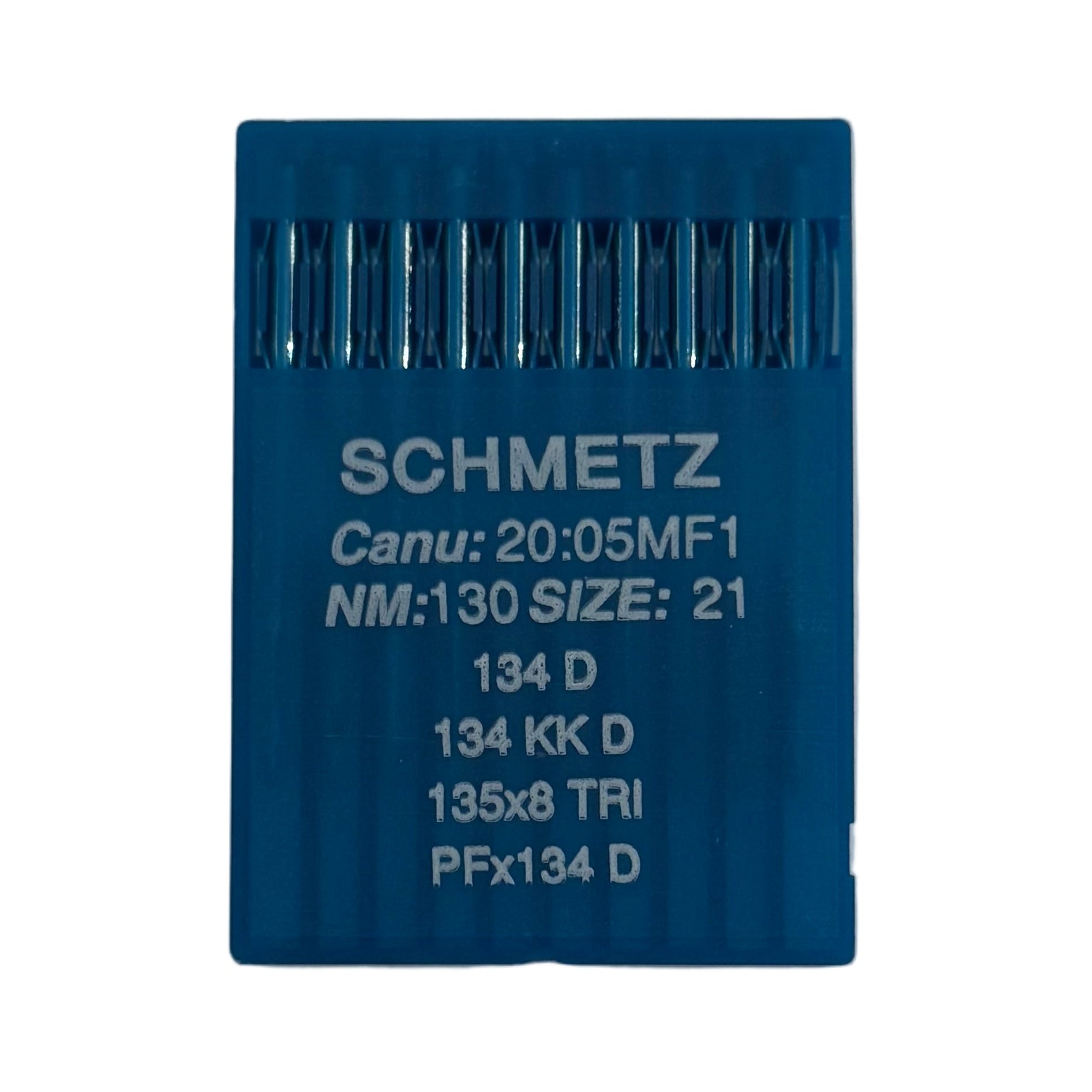

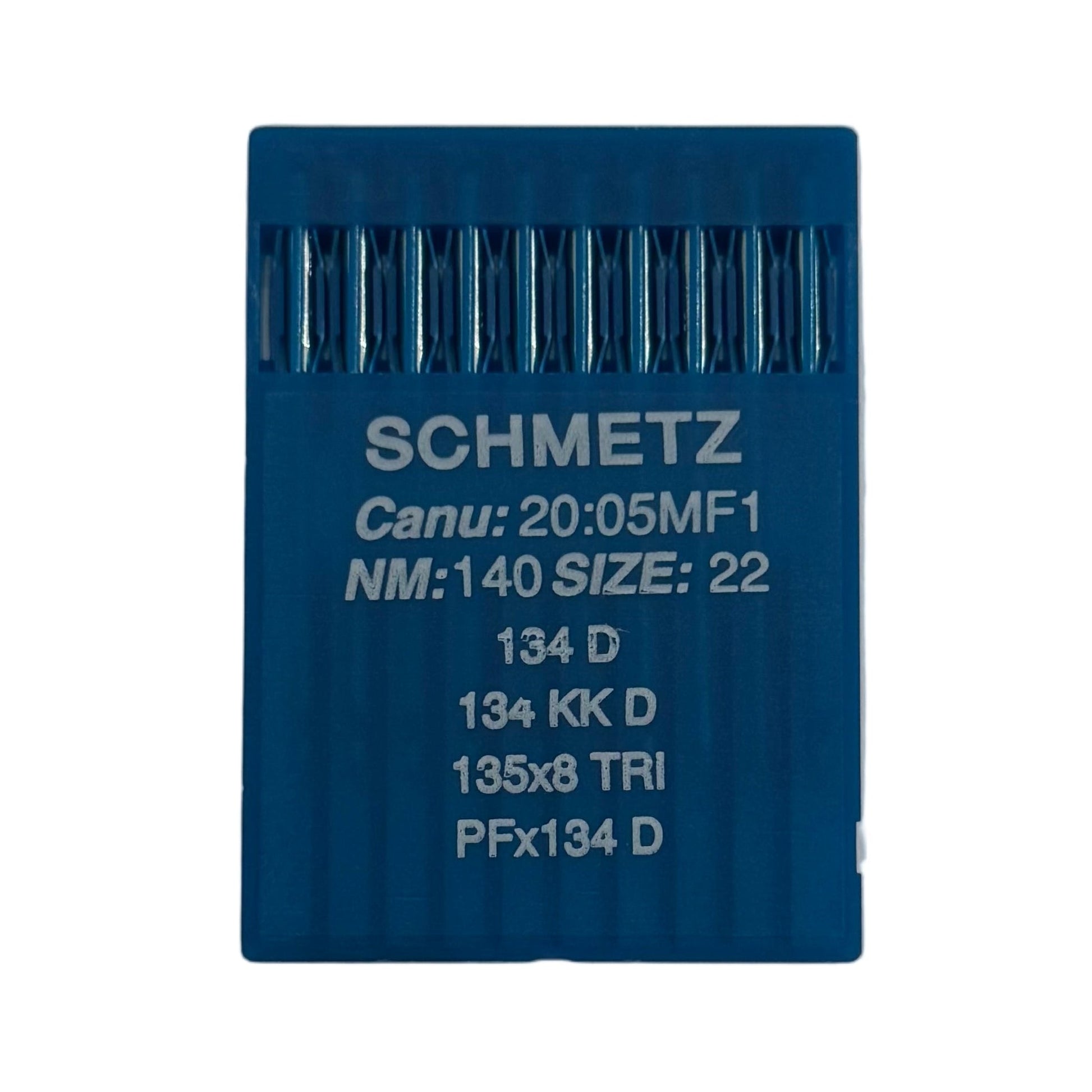

134 D, 135X8 TRI, PFX134 D, DPx5 D

• 📐 Technical dataCANU:
• 20:05MF1Tip type:
• D – Triangular PointCoating:
• ChromeShank Ø:
• 2.0 mmOverall length:
• 38.3 mmLength to eye:
• 33.9 mmShank flattening:
• none (no flattening)Blade shape:
• straightNumber of grooves:
• 1Stitch type:
• LockstitchPackaging:

10 needles

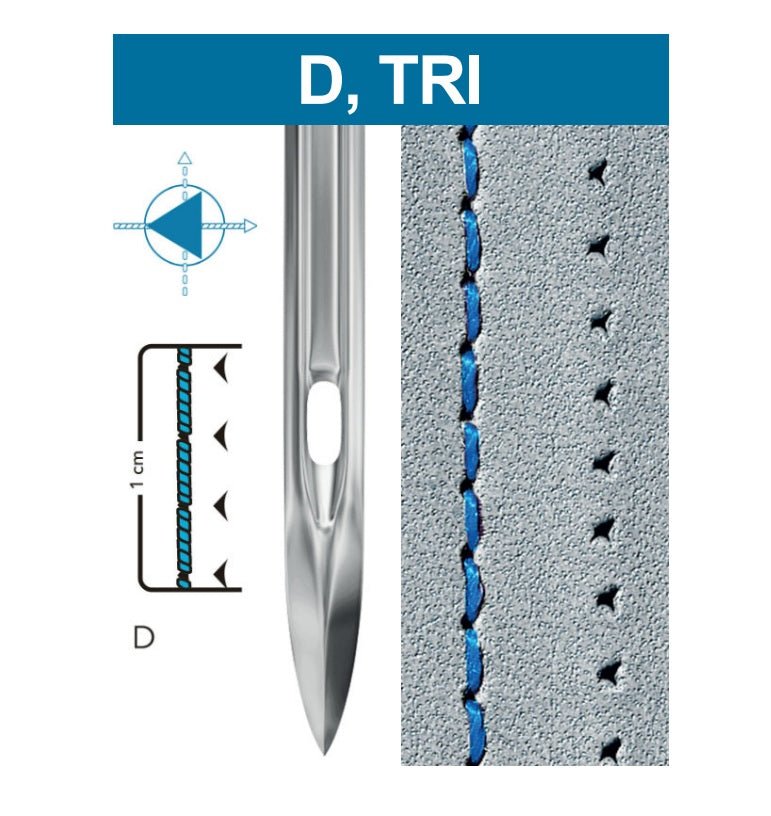

ℹ️ NoteThe visual appearance of seams

in images refers to machines with side thread take-up. Front take-up machines may produce slightly different seam effects. For a softer, less aggressive seam, consider other cutting points (e.g., S or LR).

• ✅ Why these needles?Designed for
• heavy, hard leather and technical materials
• Provide strong cutting effect and durable seam
